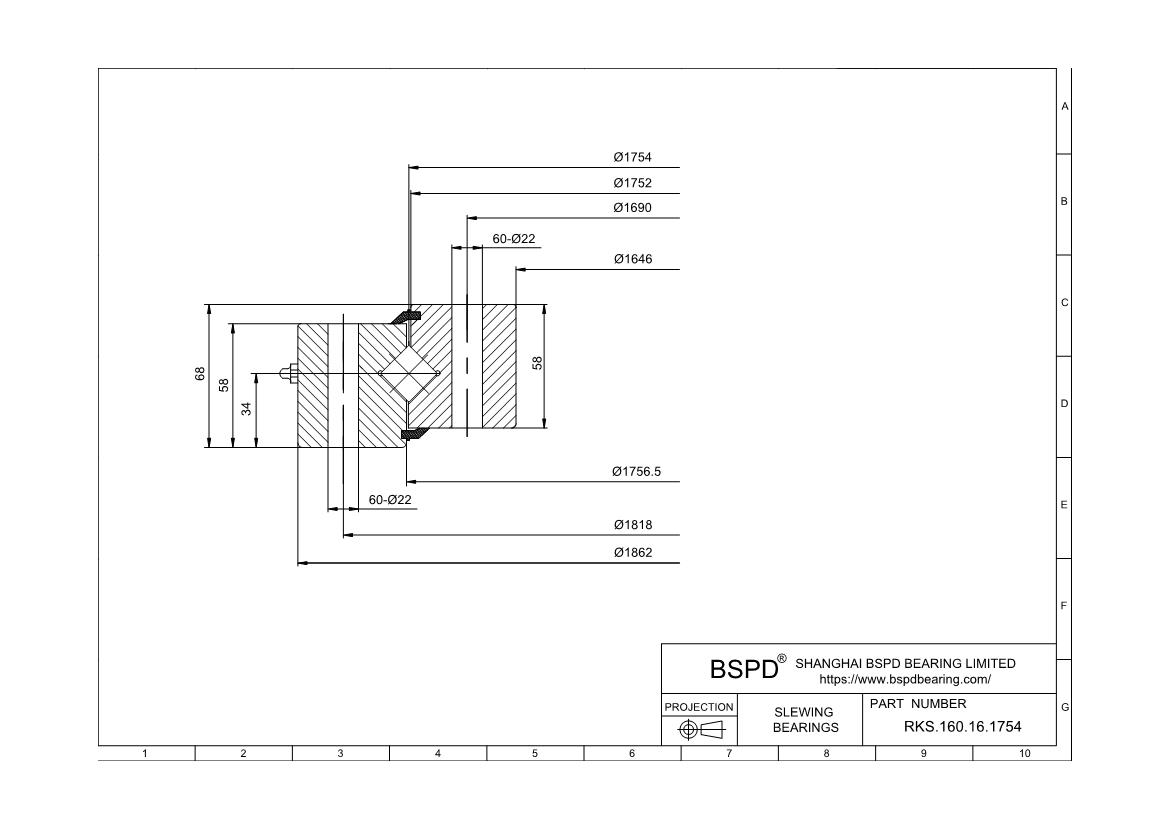

RKS.160.16.1754
SKF Slewing Bearings
Dimensions: Bore (Inner) Diameter: 1646 mm； Outer Diameter: 1862 mm； Width (Thickness): 68mm;
REQUEST FOR QUOTE
Product Attributes
| Specifications | |
| Part Number | RKS.160.16.1754 |
| Gear | without a gear |
| Geometry | |
| weight | 228 |
| dm | 1 754 |
| D | 1 862 |
| D1 | 1 756,5 |
| d | 1 646 |
| d1 | 1 752 |
| Attachment bolt holes | |
| Outer ring | |
| Je | 1 818 |
| Ke | 22 |
| Ne | 60 |
| inner ring | |
| Ji | 1 690 |
| Ki | 22 |
| Ni | 60 |
| Basic load ratings | |
| axial dynamic (C) | 491 |
| static (C0) | 3 180 |
| Static limitingload diagram | |
| Raceway curves | r6 |
| Bolt curves | b6 |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
