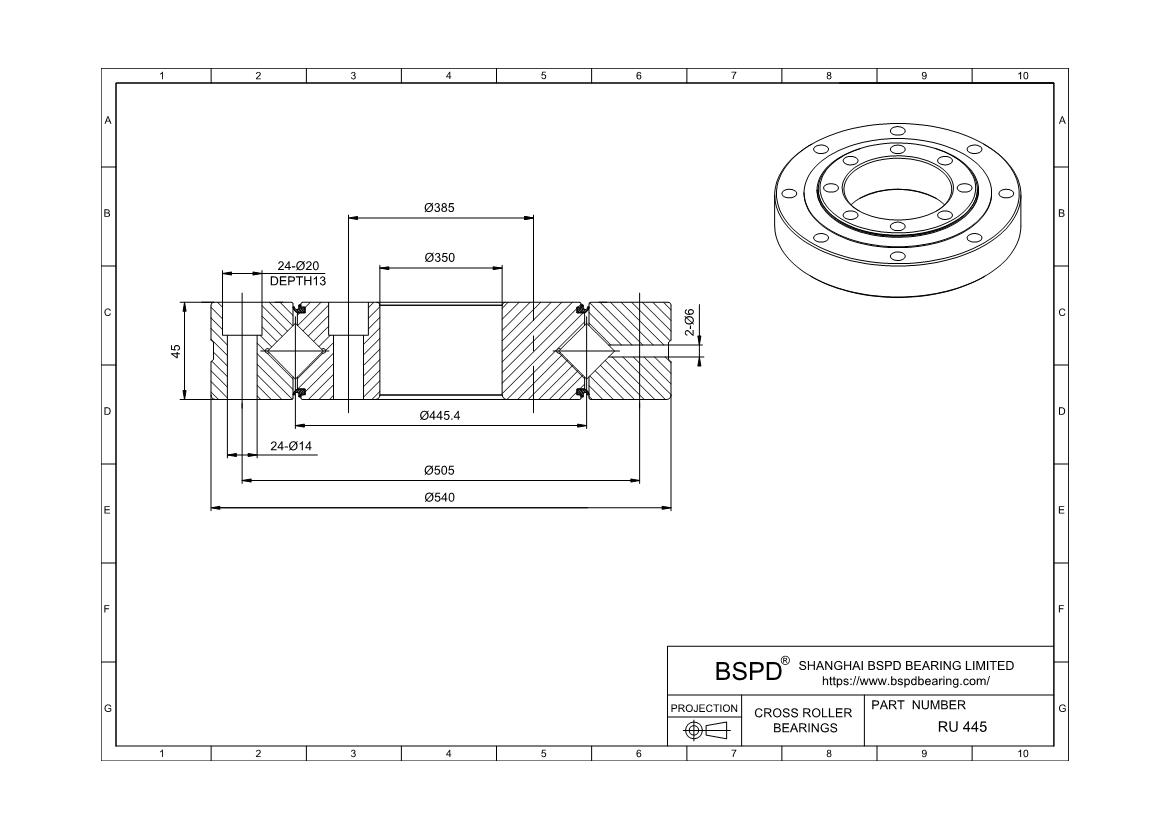

RU445UU Crossed Roller TYPE
Dimensions: Bore (Inner) Diameter: 350 mm； Outer Diameter: 540 mm； Width (Thickness): 45 mm;

RU445UU
REQUEST FOR QUOTE
* *
Send
Product Attributes
THK Part Number RU445UU
IKO Part Number
Bearing Type Roller
Roller Bearing Type Crossed
For Load Direction Combined Radial; Thrust; and Moment
Construction Single Row
Seal Type Sealed
ABEC Rating ABEC-5 ABEC-7 ABEC-9
Ring Material Steel
Roller Material Steel
Shaft dia. mm 350
Mass(kg) 35.4
Bore Dia (d) 350
Outer Dia (D) 540
Width (B) 45
Greasing hole(d1) 6
r(min) 2.5
Shoulder height ds(max) 417
Shoulder height Dh(min) 473
Basic load rating (radial)C kN 222
Basic load rating (radial)Co kN 473
Inner ring PCD1
Lubrication Required
Shaft Mount Type Press Fit
Temperature Range 0 -230
Inner ring Mounting hole
Outer ring PCD2
Outer ring Mounting hole
RU445UU
