RU66UU Crossed Roller TYPE

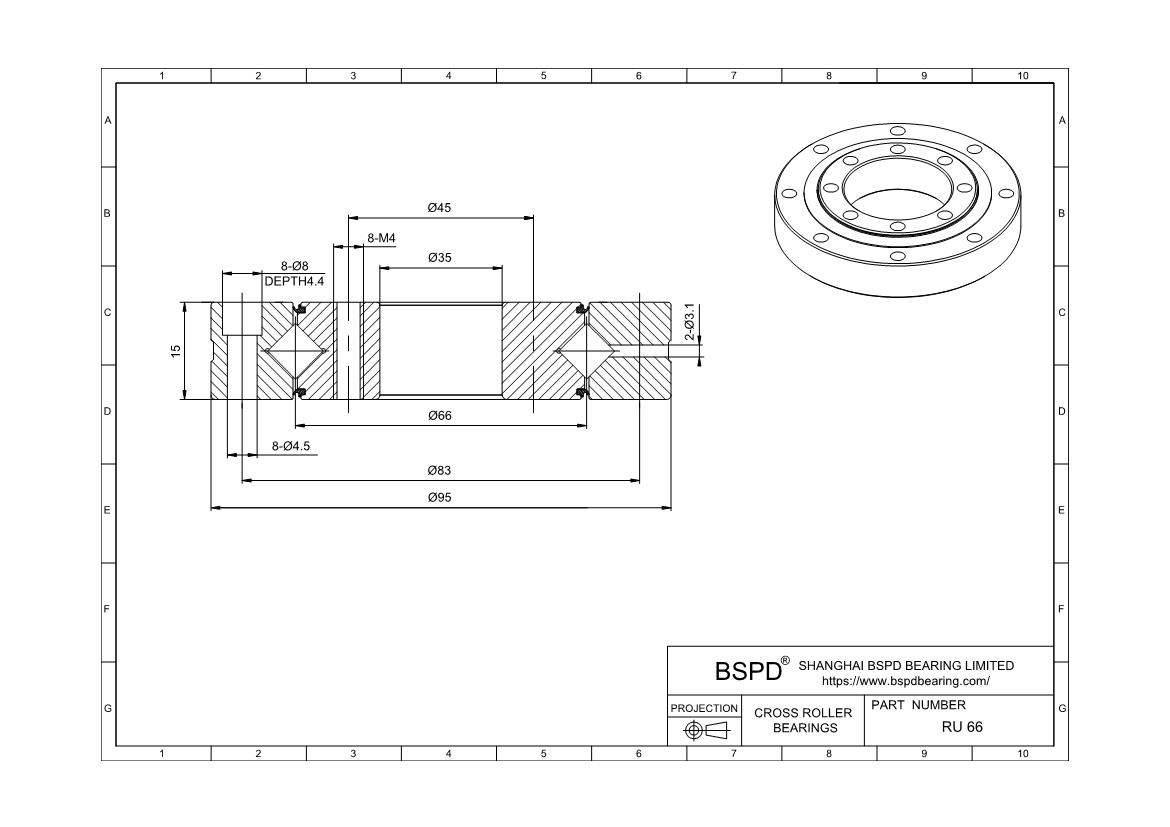

Dimensions: Bore (Inner) Diameter: 35 mm; Outer Diameter: 95 mm; Width (Thickness): 15 mm;

RU66UU
REQUEST FOR QUOTE
* *
Send
Product Attributes
IKO Part Number CRBFV3515ATUU
THK Part Number RU66UU
Bearing Type Roller
Roller Bearing Type Crossed
For Load Direction Combined Radial; Thrust; and Moment
Construction Single Row
Seal Type Sealed
ABEC Rating ABEC-5 ABEC-7 ABEC-9
Ring Material Steel
Roller Material Steel
Shaft dia. mm 35
Mass(kg) 0.62
Bore Dia (d) 35
Outer Dia (D) 95
Width (B) 15
Greasing hole(d1)
r(min)
Shoulder height ds(max)
Shoulder height Dh(min)
Basic load rating (radial)C kN 17.5
Basic load rating (radial)Co kN 22.3
Inner ring PCD1 45
Lubrication Required
Shaft Mount Type Press Fit
Temperature Range 0 -230
Inner ring Mounting hole 8-M4 through
Outer ring PCD2 83
Outer ring Mounting hole 8-φ4.5 through φ8 counter bore depth 4.4
RU66UU
Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings
