RU85UU Crossed Roller TYPE

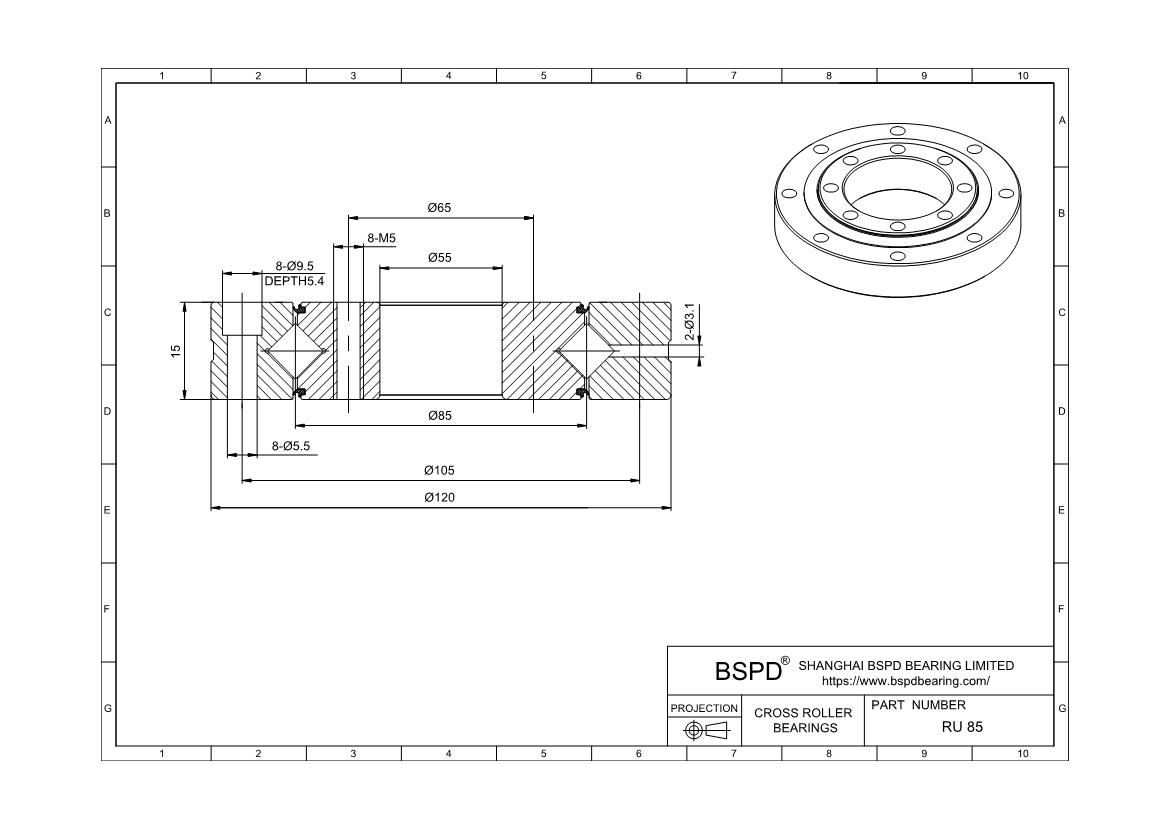

Dimensions: Bore (Inner) Diameter: 55 mm; Outer Diameter: 120 mm; Width (Thickness): 15 mm;

RU85UU
REQUEST FOR QUOTE
* *
Send
Product Attributes
IKO Part Number CRBFV5515ATUU
THK Part Number RU85UU
Bearing Type Roller
Roller Bearing Type Crossed
For Load Direction Combined Radial; Thrust; and Moment
Construction Single Row
Seal Type Sealed
ABEC Rating ABEC-5 ABEC-7 ABEC-9
Ring Material Steel
Roller Material Steel
Shaft dia. mm 55
Mass(kg) 1
Bore Dia (d) 55
Outer Dia (D) 120
Width (B) 15
Greasing hole(d1)
r(min)
Shoulder height ds(max)
Shoulder height Dh(min)
Basic load rating (radial)C kN 20.3
Basic load rating (radial)Co kN 29.5
Inner ring PCD1 65
Lubrication Required
Shaft Mount Type Press Fit
Temperature Range 0 -230
Inner ring Mounting hole 8-M5 through
Outer ring PCD2 105
Outer ring Mounting hole 8-φ5.5 through φ9.5 counter bore depth 5.4
RU85UU
