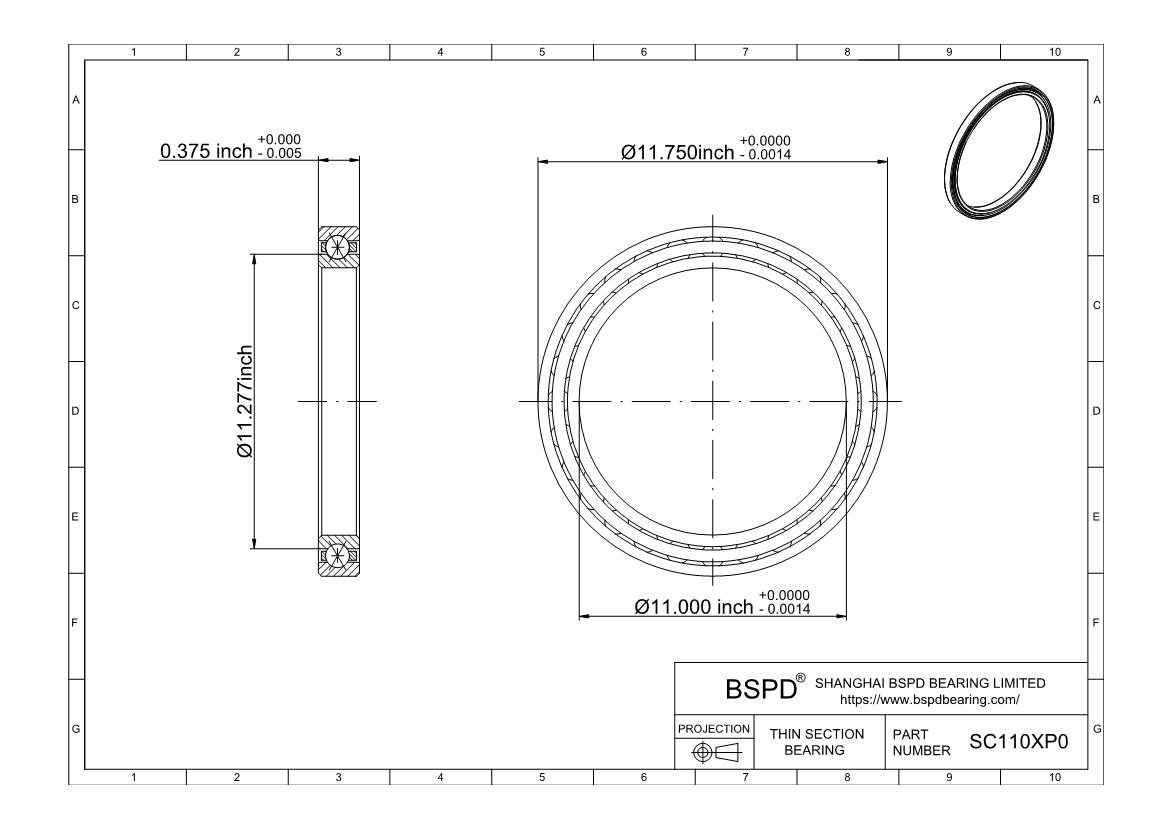

SC110XP0
RealiSlim Stainless Steel Thin Section Bearings
Dimensions: Bore (Inner) Diameter: 11.000"； Outer Diameter: 11.750"； Width (Thickness): 0.375";
REQUEST FOR QUOTE
Product Attributes
| Bearing Type | Ball | |
| For Load Direction | Four Point | |
| Construction | Single Row | |
| Seal Type | Open | |
| Cross Section | 3/8" x 3/8" | |
| Part Number | SC110XP0 | |
| For Shaft Diameter | 11.000" | |
| Bore Dia (d) | 11.000" | |
| Bore Dia Tolerance | -0.0014"– 0" | |
| For Housing ID | 11.750" | |
| Outer Dia (D) | 11.750" | |
| Outer Dia Tolerance | -0.0014"– 0" | |
| Width (B) | 0.375" | |
| Width Tolerance | +.000 –.005" | |
| Land dia.L1 | 11.277" | |
| Land dia.L2 | 11.473" | |
| Ring Material | Aisi440c Stainless Steel | |
| Ball Material | Aisi440c Stainless Steel | |
| Cage Material | Brass | |
| Dynamic (lbs) | Radial | 2,496 |
| Thrust | 4,180 | |
| Moment | 10,651 | |
| Static (lbs) | Radial | 5,470 |
| Thrust | 13,680 | |
| Moment | 31,110 | |
| Lubrication | Lubricated | |
| Shaft Mount Type | Press Fit | |
| Temperature Range | -30° to 110 °C | |
| ABEC Rating | ABEC-1 | |
| Radial Clearance | 0.0000 – 0.0005" | |
| RoHS | Compliant | |
| Weight (lbs) | 1.160 | |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
