SC160XP0 RealiSlim Stainless Steel Thin Section Bearings

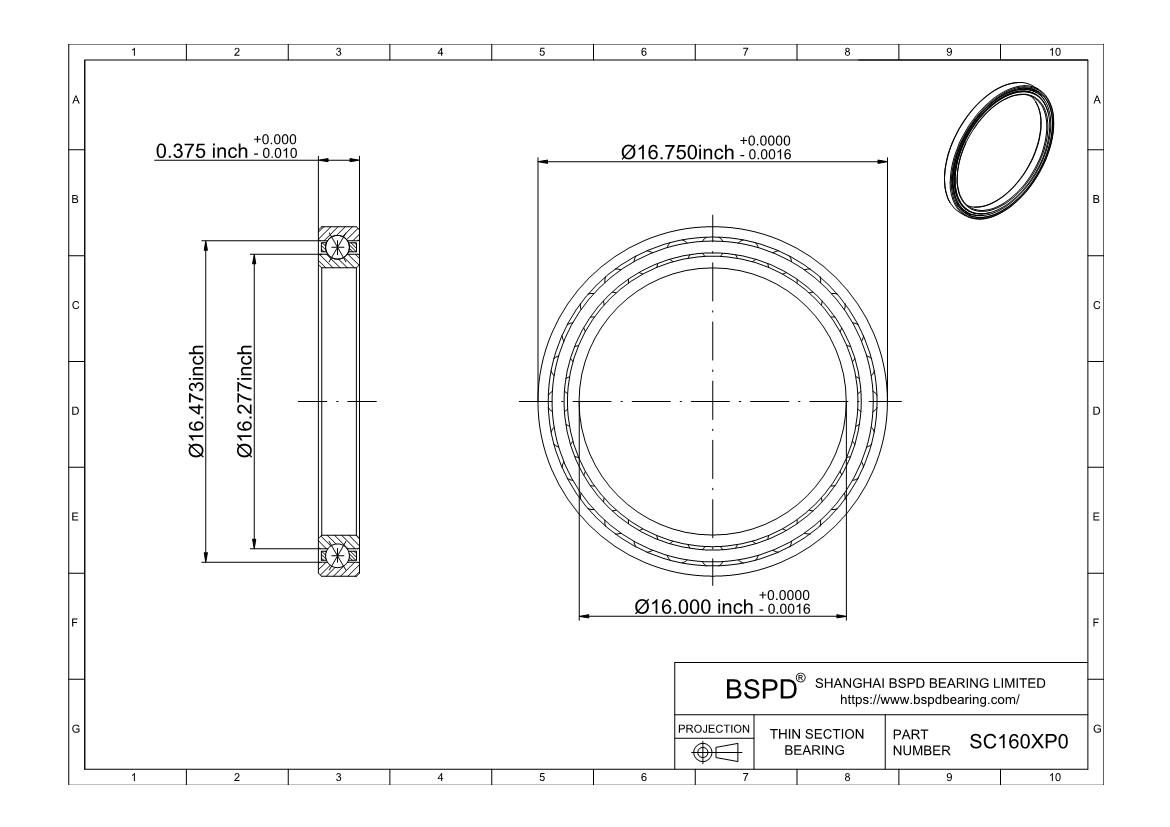

Dimensions: Bore (Inner) Diameter: 16.000"; Outer Diameter: 16.750"; Width (Thickness): 0.375";

SC160XP0
REQUEST FOR QUOTE
* *
Send
Product Attributes
Bearing Type Ball
For Load Direction Four Point
Construction Single Row
Seal Type Open
Cross Section 3/8" x 3/8"
Part Number SC160XP0
For Shaft Diameter 16.000"
Bore Dia (d) 16.000"
Bore Dia Tolerance -0.0016"– 0"
For Housing ID 16.750"
Outer Dia (D) 16.750"
Outer Dia Tolerance -0.0016"– 0"
Width (B) 0.375"
Width Tolerance +.000 –.010"
Land dia.L1 16.277"
Land dia.L2 16.473"
Ring Material Aisi440c Stainless Steel
Ball Material Aisi440c Stainless Steel
Cage Material Brass
Dynamic (lbs) Radial 3,086
Thrust 5,330
Moment 18,955
Static (lbs) Radial 7,880
Thrust 19,690
Moment 64,480
Lubrication Lubricated
Shaft Mount Type Press Fit
Temperature Range -30° to 110 °C
ABEC Rating ABEC-1
Radial Clearance 0.0000 – 0.0005"
RoHS Compliant
Weight (lbs) 1.730
SC160XP0
Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings
What are the types of Thin Section Bearings SC160XP0 ? RealiSlim Stainless Steel Thin Section Bearings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:Negotiation
Price:Negotiation
