SF300CP0 RealiSlim Stainless Steel Thin Section Bearings

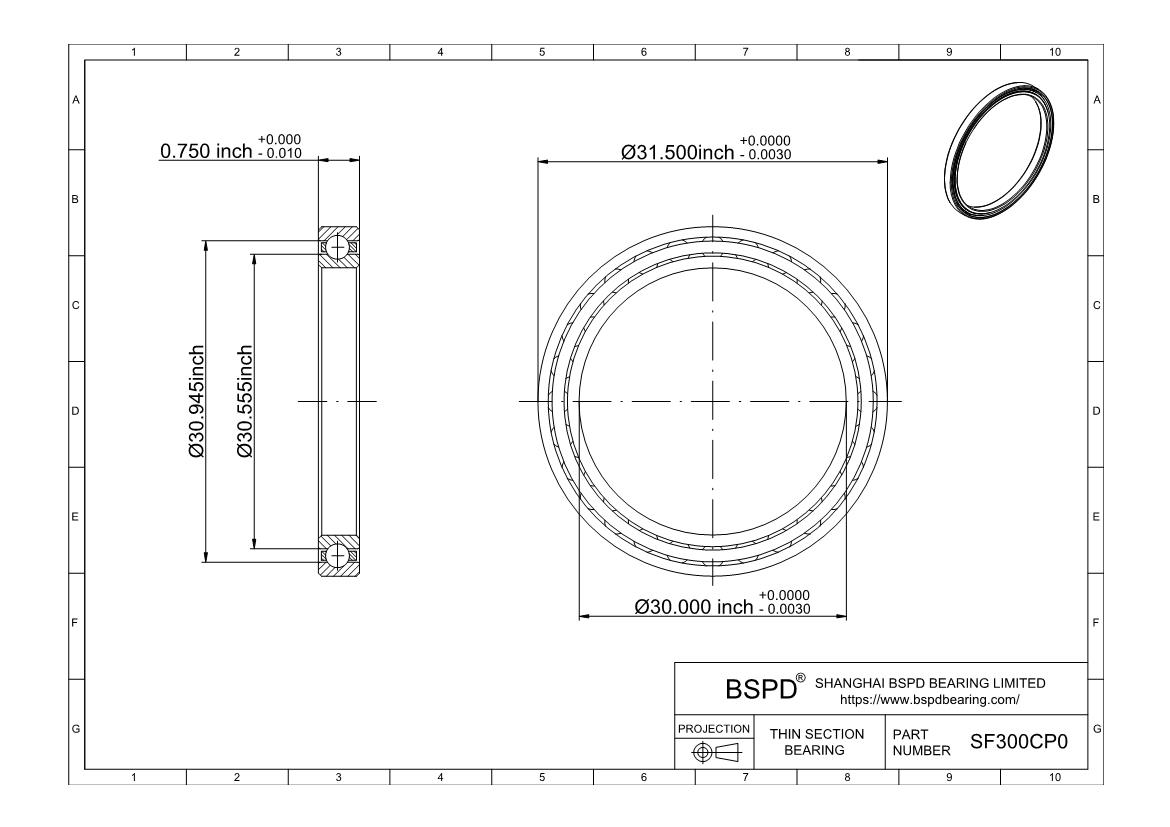

Dimensions: Bore (Inner) Diameter: 30.000"; Outer Diameter: 31.500"; Width (Thickness): 0.75";

SF300CP0
REQUEST FOR QUOTE
* *
Send
Product Attributes
Bearing Type Ball
For Load Direction Radial
Construction Single Row
Seal Type Open
Cross Section 3/4" x 3/4"
Part Number SF300CP0
For Shaft Diameter 30.000"
Bore Dia (d) 30.000"
Bore Dia Tolerance -0.0030"– 0"
For Housing ID 31.500"
Outer Dia (D) 31.500"
Outer Dia Tolerance -0.0030"– 0"
Width (B) 0.75"
Width Tolerance +.000 –.010"
Land dia.L1 30.555"
Land dia.L2 30.945"
Ring Material Aisi440c Stainless Steel
Ball Material Aisi440c Stainless Steel
Cage Material Brass
Dynamic radial (lbs) 9828
Static radial (lbs) 34700
Lubrication Lubricated
Shaft Mount Type Press Fit
Temperature Range -30° to 110 °C
ABEC Rating ABEC-1
Radial Clearance 0.0000 – 0.0005"
RoHS Compliant
Weight (lbs) 13.000
SF300CP0
