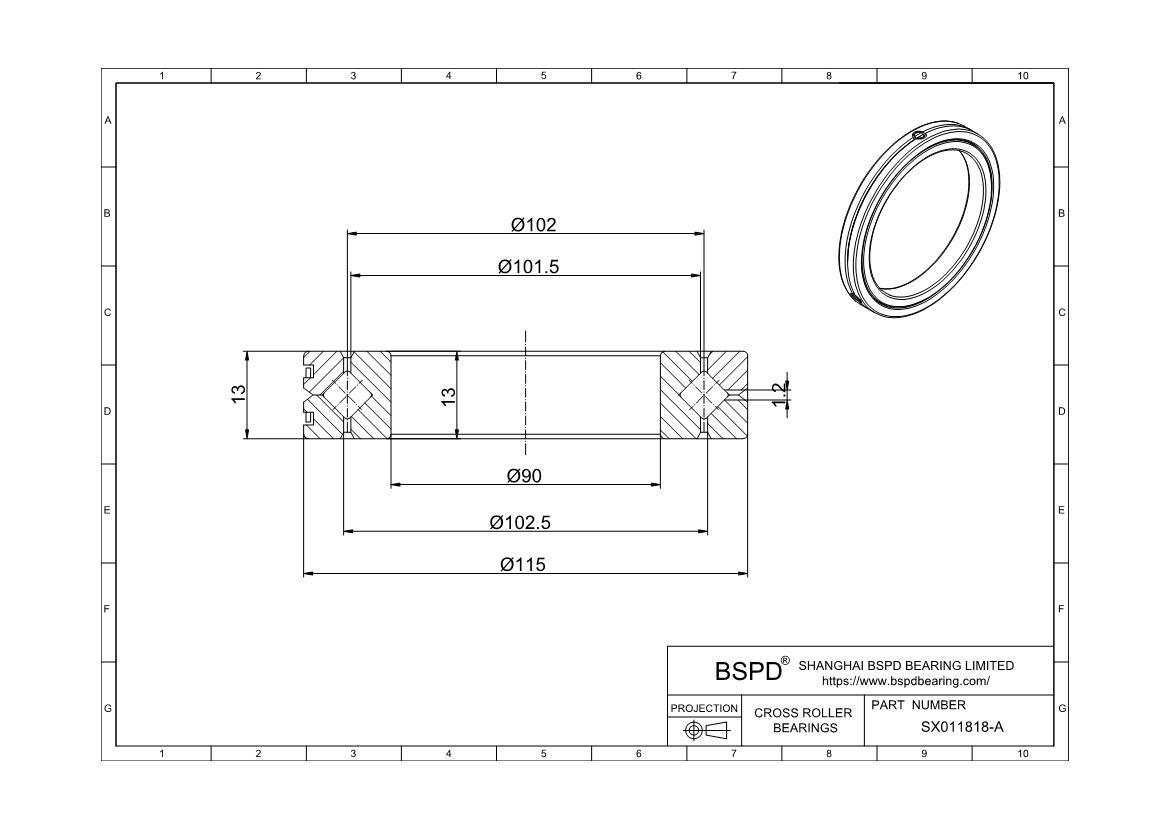

SX011818-A Crossed Roller TYPE
Dimensions: Bore (Inner) Diameter: 90 mm； Outer Diameter: 115 mm； Width (Thickness): 13 mm;

SX011818-A
REQUEST FOR QUOTE
* *
Send
Product Attributes
Bore Diameter(d1) 90 mm
Bore diameter upper tolerance 0.004
Bore diameter lower tolerance -0.018
Outside Diameter(Da) 115 mm
Outside diameter lower tolerance -0.022
Height(H) 13 mm
Width upper tolerance 0.06
Width lower tolerance -0.06
Weight 0.354 kg
Di 102.5 mm
DM 102 mm
da 101.5 mm
height of individual ring(h) 13 mm
Height of individual ring lower tolerance -0.01
rmin 1 mm
S 1.2 mm
Running accuracy, radial 0.01 mm
Running accuracy, axial 0.01 mm
Min. radial bearing clearance(S rmin) 0.003 mm
Maximum radial bearing clearance(S rmax) 0.015 mm
Min. axial tilting clearance(Sk min) 0.006 mm
Maximum axial tilting clearance(Sk max) 0.03 mm
Low clearance: Radial clearance(RLOmax) 0.003 mm
Low clearance: Preload(RLOmax) 0.006 mm
Min. bearing preload(VSPmin) 0.003 mm
Maximum bearing preload(VSPmax) 0.015 mm
Basic dynamic load rating, axial(Ca) 26500 N
Basic static load rating, axial(C0a) 87000 N
Basic dynamic load rating, radial (for radial load only)(Cr) 18900 N
Basic static load rating, radial (for radial load only)(C0r) 43000 N
Limiting speed for oil lubrication with normal clearance(NG oil) 750 1/min
Limiting speed for grease lubrication with normal clearance(NG Grease) 750 1/min
Limiting speed for oil lubrication with preload(NG oil) 1500 1/min
Limiting speed for grease lubrication with preload(NG Grease) 375 1/min
Dimensions identical to ISO dimension series 18 61814
Operating temperature min.(Tmin) -30 °C
Operating temperature max.(Tmax) 80 °C

SX011818-A
Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings
