SX011832-A Crossed Roller TYPE

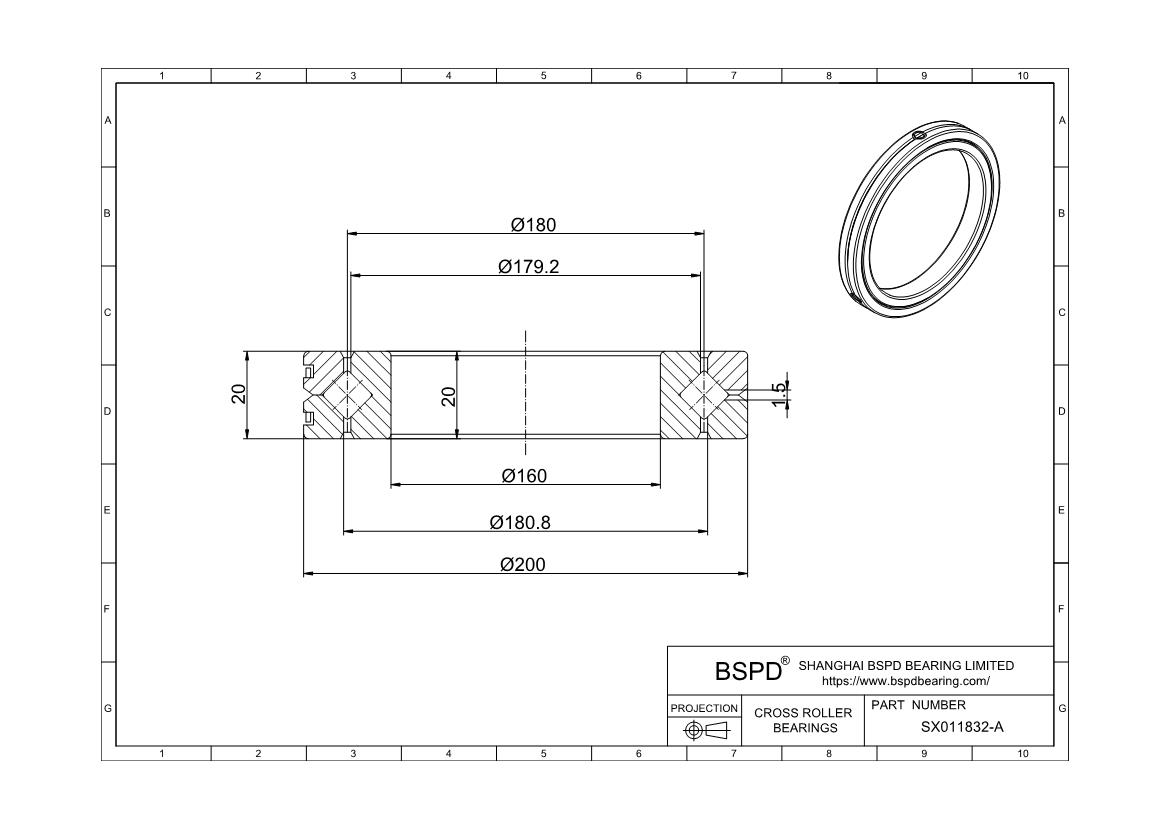

Dimensions: Bore (Inner) Diameter: 160 mm; Outer Diameter: 200 mm; Width (Thickness): 20 mm;

SX011832-A
REQUEST FOR QUOTE
* *
Send
Product Attributes
Bore Diameter(d1) 160 mm
Bore diameter upper tolerance 0.004
Bore diameter lower tolerance -0.021
Outside Diameter(Da) 200 mm
Outside diameter lower tolerance -0.029
Height(H) 20 mm
Width upper tolerance 0.1
Width lower tolerance -0.1
Weight 1.581 kg
Di 180.8 mm
DM 180 mm
da 179.2 mm
height of individual ring(h) 20 mm
Height of individual ring lower tolerance -0.025
rmin 1.1 mm
S 1.5 mm
Running accuracy, radial 0.015 mm
Running accuracy, axial 0.01 mm
Min. radial bearing clearance(S rmin) 0.005 mm
Maximum radial bearing clearance(S rmax) 0.02 mm
Min. axial tilting clearance(Sk min) 0.01 mm
Maximum axial tilting clearance(Sk max) 0.04 mm
Low clearance: Radial clearance(RLOmax) 0.004 mm
Low clearance: Preload(RLOmax) 0.008 mm
Min. bearing preload(VSPmin) 0.005 mm
Maximum bearing preload(VSPmax) 0.02 mm
Basic dynamic load rating, axial(Ca) 69000 N
Basic static load rating, axial(C0a) 255000 N
Basic dynamic load rating, radial (for radial load only)(Cr) 49000 N
Basic static load rating, radial (for radial load only)(C0r) 126000 N
Limiting speed for oil lubrication with normal clearance(NG oil) 425 1/min
Limiting speed for grease lubrication with normal clearance(NG Grease) 425 1/min
Limiting speed for oil lubrication with preload(NG oil) 850 1/min
Limiting speed for grease lubrication with preload(NG Grease) 210 1/min
Dimensions identical to ISO dimension series 18 61832
Operating temperature min.(Tmin) -30 °C
Operating temperature max.(Tmax) 80 °C
