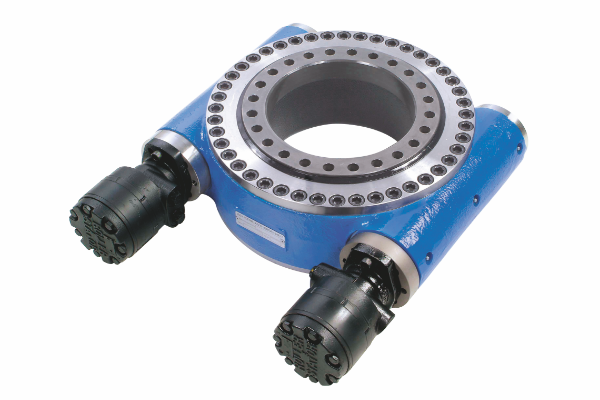

WD-H 0490 / 2 drive IMO Slewing Rings & Slewing drives
Dimensions: Bore (Inner) Diameter: ； Outer Diameter: ； Width (Thickness): ;

Product Attributes

Specifications
Part Number	WD-H 0490 / 2 drives
Module (m) (mm)	8
Number of threads of the worm	1
gear raito (i)	70
Self-locking gears	No**
Max.torque Sf-1(Md max) (Nm)	119598
Nom.torque Sw=1 at n=3 min-1 (Md nom) (Nm)	119598
Max.holding torque* Sfs=1(static) (Mh max) (Nm)	119598
Static load rating, radial (Co rad) (KN)	2775
Static load rating,aixal (Co ax) (KN)	5662
Dynamic load rating, radial (Crad) (KN)	502
Dynamic load rating,axial (Cax) (KN)	707
Weight,incl 12kg for hydraulic motor RE200 (KG)	394
Optionally with brake
See: Technical Information, section Self-locking
The hydraulic/electric motor is selected according to the
actual requirements and customer specification
Selection example
Performance data with hydraulic motor RE200
Pressure differential (△P）(bar)	145
Oil flow (Q) (I/min)	148
Output speed (n) (min-1)	1
Max.achievable torque (Md) (Nm)	119598
