XV110
Crossed Roller TYPE

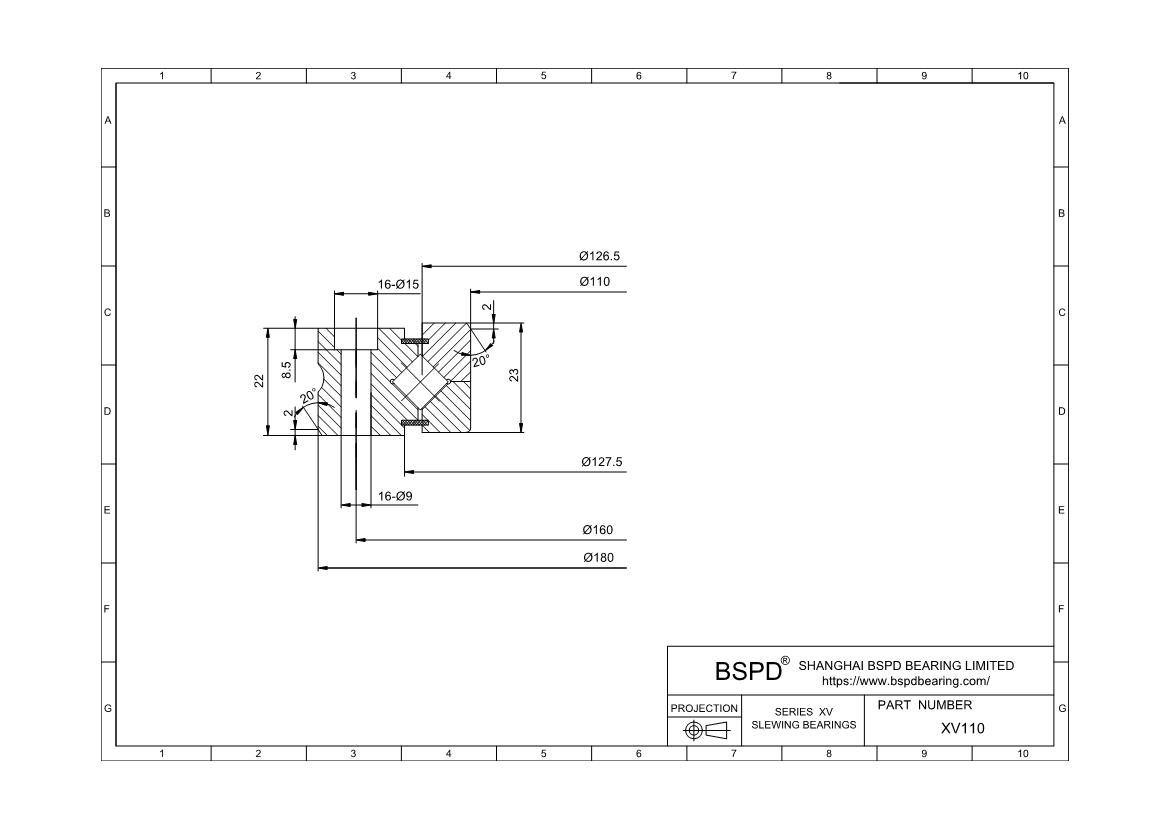

Dimensions: Bore (Inner) Diameter: 110 mm； Outer Diameter: 180 mm； Width (Thickness): 22 mm;
REQUEST FOR QUOTE
Product Attributes
| XV110 Crossed roller bearing | |
| Part Number | XV110 |
| di | 110 mm Tolerance: J6 |
| Da | 180 mm Tolerance: h6 |
| Di | 127;5 mm |
| da | 126;5 mm |
| dB | 9 mm |
| dS | 15 mm |
| Ha | 22 mm |
| hi | 23 mm |
| La | 160 mm |
| Number of holes per ring(nϑr) | 16 |
| tS | 8;5 mm |
| weight(w) | 2;48 kg |
| Running accuracy; axial | 0;010 mm |
| Running accuracy; radial | 0;010 mm |
| Maximum permissible radial load against friction lock(Frper) | 28200 N |
| Basic dynamic load rating; axial(Ca) | 57000 N |
| Basic static load rating; axial(C0a) | 180000 N |
| Basic dynamic load rating; radial(Cr) | 40500 N |
| Basic static load rating; radial(C0r) | 88000 N |
| Limiting speed with preload | 301 1/min |
| Limiting speed with clearance | 602 1/min |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Crossed Roller Bearings XV110 ? Crossed Roller TYPE Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
