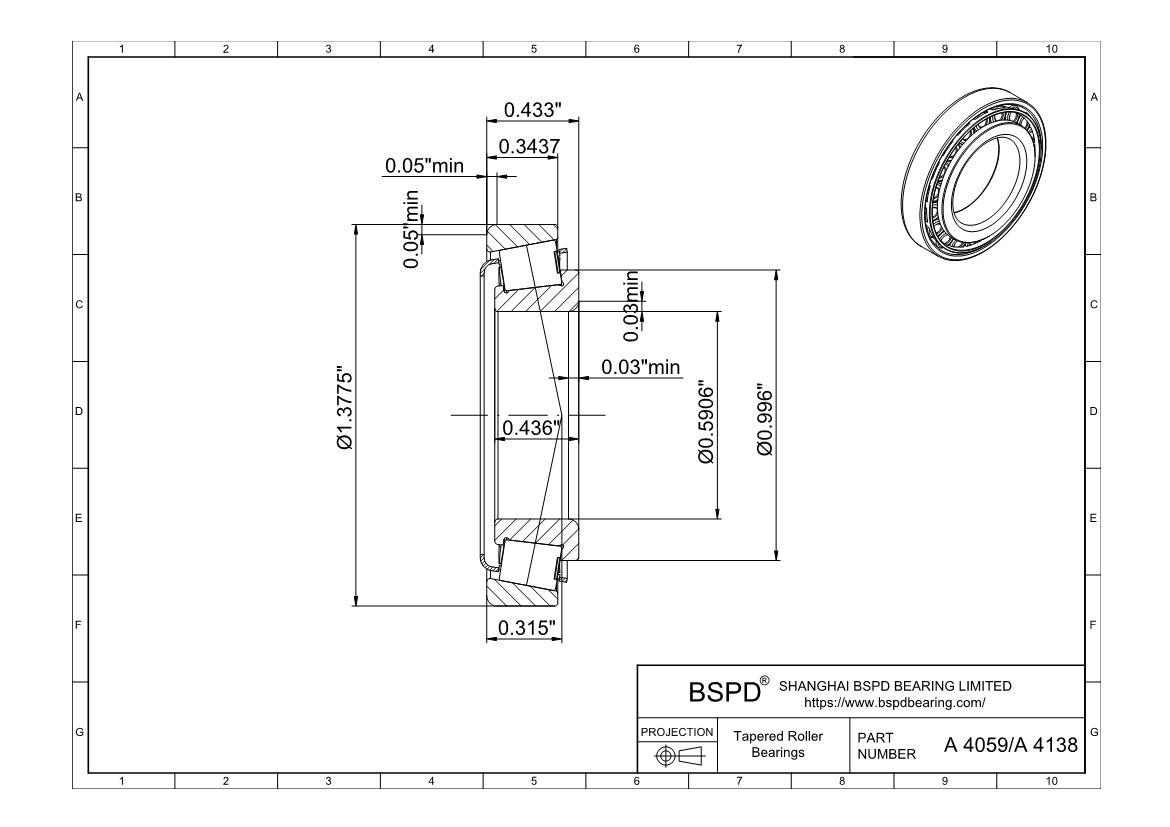

A 4059/A 4138 Inch Single Row Tapered Roller Bearings
Dimensions: Bore (Inner) Diameter: 0.5906 "； Outer Diameter: 1.3775 "； Width (Thickness): 0.4330 ";

A 4059/A 4138
REQUEST FOR QUOTE
* *
Send
Product Attributes
Product NumberA 4059/A 4138
Bore diameter0.5906 "
Outside diameter1.3775 "
Total width0.4330 "
Widthof inner ring0.4326 "
Width of outer ring0.3437 "
Chamfer minimum dimension of inner ring (r1,2)0.8 mm
Chamfer minimum dimension of outer ring (r3,4)1.3
Distance side face to pressure point (a)8
Basic dynamic load rating (Cr)16.5
Basic static load rating (Cor)13.2
Fatigue load limit (Pu)1.29
Reference speed17000 r/min
Limiting speed22000 r/min
Mass0.051 kg
Limiting value (e)0.46
Axial load factor (Y)1.3
Axial load factor (Y0)0.7
Maximum diameter of shaft abutment (da)20 mm
Minimum diameter of shaft abutment (db)20.5 mm
Minimum diameter of housing abutment (Da)28 mm
Maximum diameter of housing abutment (Da)29 mm
Minimum diameter of housing abutment (Db)31 mm
Minimum width of space required in housing on large side face (C2 mm
Minimum width of space required in housing on small side face (C2 mm
Maximum Radius of shaft fillet (ra)0.8 mm
Maximum Radius of housing fillet (rb)1.3 mm
A 4059/A 4138
Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings
What are the types of Tapered roller bearings A 4059/A 4138 ? Inch Single Row Tapered Roller Bearings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:Negotiation
Price:Negotiation
  • Fast Delivery     √
  • Best Quality       √
  • Good Price        √
