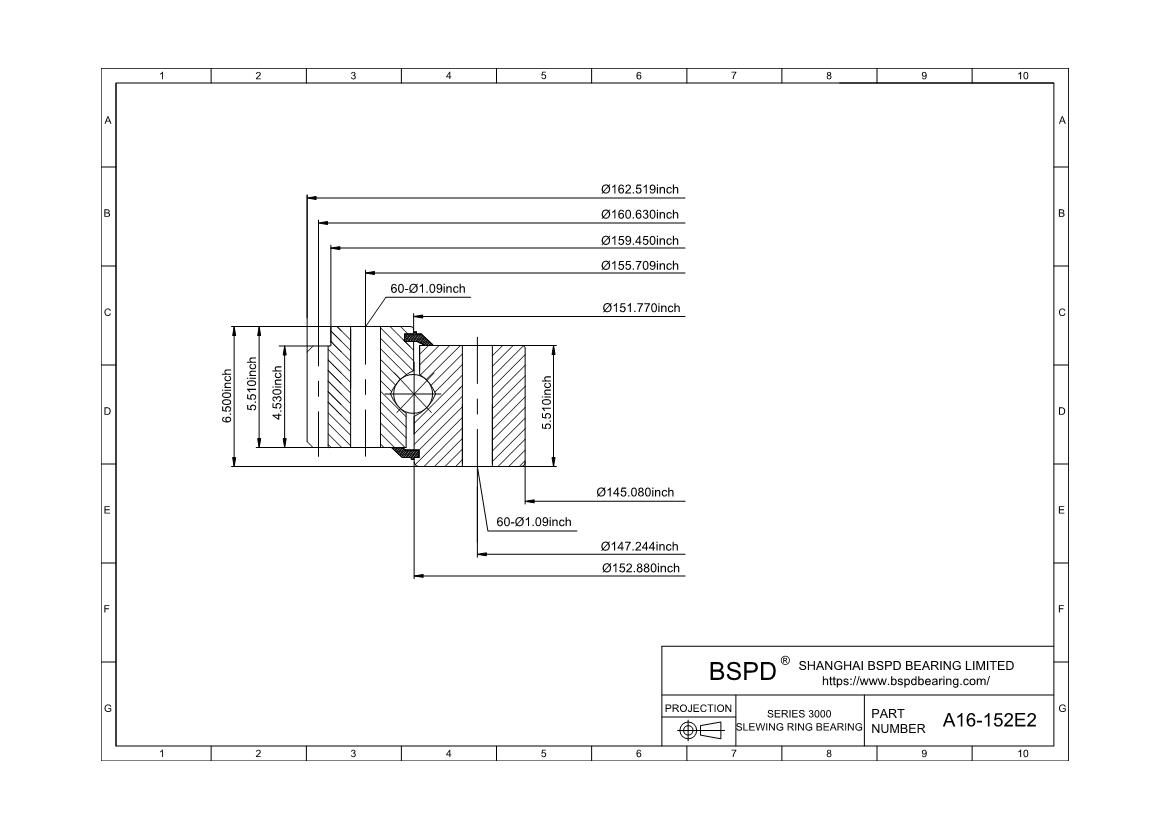

A16-152E2
Inch Size Slewing Rings
Dimensions: Bore (Inner) Diameter: 145.08"； Outer Diameter: 162.519"； Width (Thickness): 6.5";
REQUEST FOR QUOTE
Product Attributes
| Specifications | |
| Part Number | A16-152E2 |
| Raceway Moment (ft-lbs) | 16600000 |
| Compressive Thrust(lbs) | 5750000 |
| Weight(lbs) | 5734 |
| Outline Dimensions(inches) | |
| OD | 162.519 |
| ID | 145.08 |
| OE | 159.45 |
| OI | 151.77 |
| IO | 152.88 |
| HT | 6.5 |
| OH | 5.51 |
| IH | 5.51 |
| Mounting Holes | |
| OBC | 155.709 |
| OU | 1.09 |
| No of OBC Holes | 60 |
| IBC | 147.244 |
| IU | 1.09 |
| No of IBC Holes | 60 |
| Hole Figure Style | 1 |
| Gear Data | |
| PD | 160.63 |
| DP | 1.5875 |
| NO of Teeth | 255 |
| Tooth From | 20d, 16 Module |
| F | 4.53 |
| Tangential Gear Capacity(lbs) | 46700 |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
