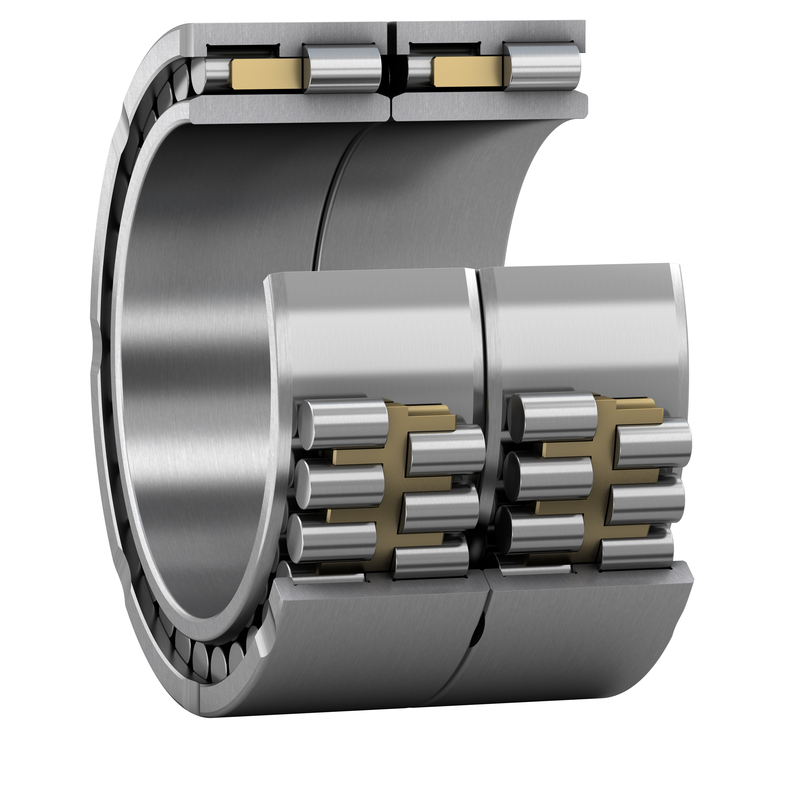

BC4-0124 Four-Row Cylindrical Roller Bearings
Dimensions: Bore (Inner) Diameter: 300 mm； Outer Diameter: 420 mm； Width (Thickness): ;

BC4-0124
REQUEST FOR QUOTE
* *
Send
Product Attributes
Product NumberBC4-0124
System of MeasurementMetric
Roller Bearing TypeCylindrical
For Load DirectionCombined Radial and Thrust
Bore Dia300 mm
Outer Dia420 mm
Total Bearing Width Over Inner Ring(S)(B)300 mm
Total Bearing Width Over Outer Ring(S)(C)300 mm
Dynamic Radial Load4400 kN
Static Radial Load8300 kN
LubricationGrease, Oil
Temperature Range-30° to 110 °C
RoHSCompliant
REACHCompliant
Chamfer Dimension On The Outer Ring(r3,4)(min#)3 mm
Corner Radius/Chamfer Inner Ring(r2)(min#)6.4 mm
Dynamic Load Rating4400 kN
Static Load Rating8300 kN
Fatigue Load Limit(Pu)800 kN
Static Load Rating 8000~9000 kN
Mass Bearing134 kg
Raceway Diameter Inner Ring(F)332 mm
Design Variant/FeatureBC4.7/W33WO
Width of Annular Groove(B)11.1 mm
Chamfer Angle Inner Ring(α)20 °
This Bearing Can Replace314484 D
Outer Ring Shoulder Diameter(D1)378.2 mm
Permissible Axial Displacement(S)3 mm
Bearing Ring With Roller And Cage AssemblyRBC4-0124
Separable Bearing RingLBC4-0094
Diameter Lubrication Hole(Outer Ring)(K)6 mm
