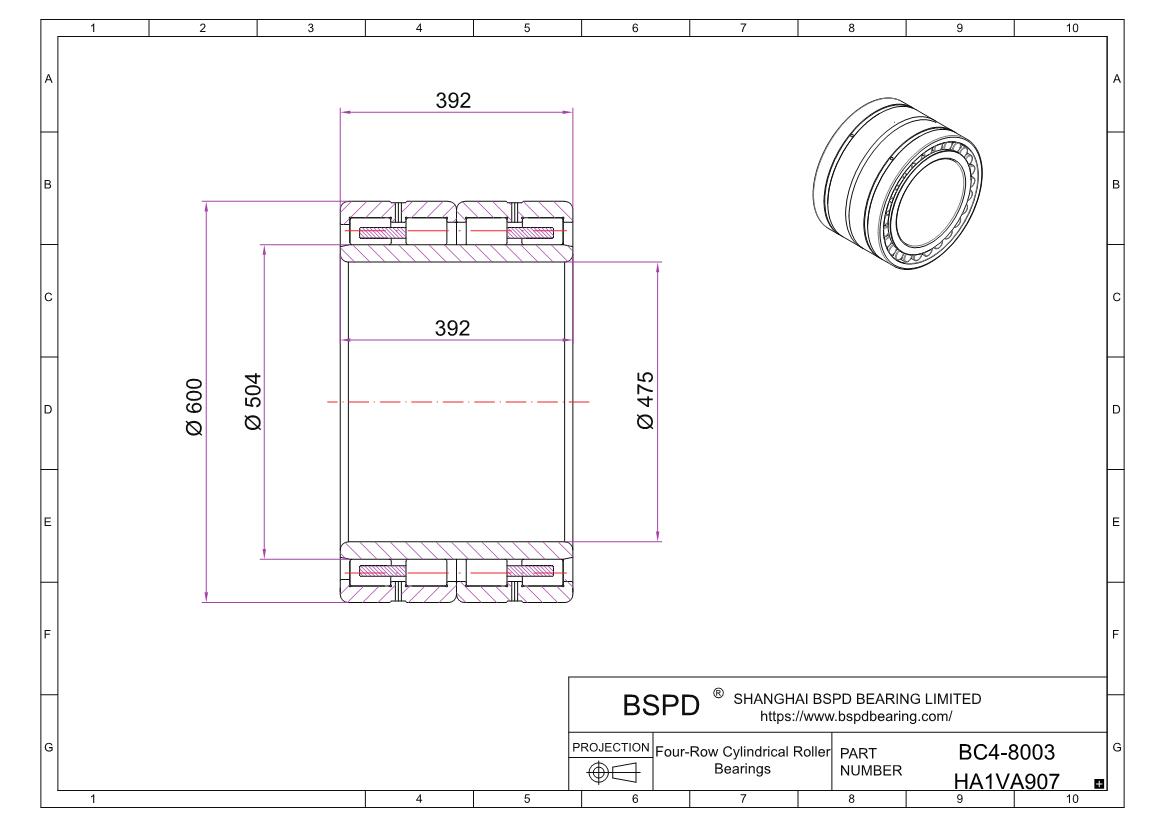

BC4-8003/HA1VA907 Four-Row Cylindrical Roller Bearings
Dimensions: Bore (Inner) Diameter: 475 mm； Outer Diameter: 600 mm； Width (Thickness): ;

BC4-8003/HA1VA907
REQUEST FOR QUOTE
* *
Send
Product Attributes
Product NumberBC4-8003/HA1VA907
System of MeasurementMetric
Roller Bearing TypeCylindrical
For Load DirectionCombined Radial and Thrust
Bore Dia475 mm
Outer Dia600 mm
Total Bearing Width Over Inner Ring(S)(B)392 mm
Total Bearing Width Over Outer Ring(S)(C)392 mm
Dynamic Radial Load5500 kN
Static Radial Load14600 kN
LubricationGrease, Oil
Temperature Range-30° to 110 °C
RoHSCompliant
REACHCompliant
Corner Radius/Chamfer Inner Ring(r1,2)(min#)3 mm
Chamfer Dimension On The Outer Ring(r3,4)(min#)3 mm
Dynamic Load Rating5500 kN
Static Load Rating14600 kN
Fatigue Load Limit(Pu)1270 kN
Static Load Rating 10000 kN greater
Calculation Factor(Kr)500
Mass Bearing240 kg
Raceway Diameter Inner Ring(F)504 mm
Design Variant/FeatureBC4.22/W33G
Width of Annular Groove(B)16.7 mm
Outer Ring Shoulder Diameter(D1)562.3 mm
Diameter Lubrication Hole(Outer Ring)(K)9 mm
BC4-8003/HA1VA907
