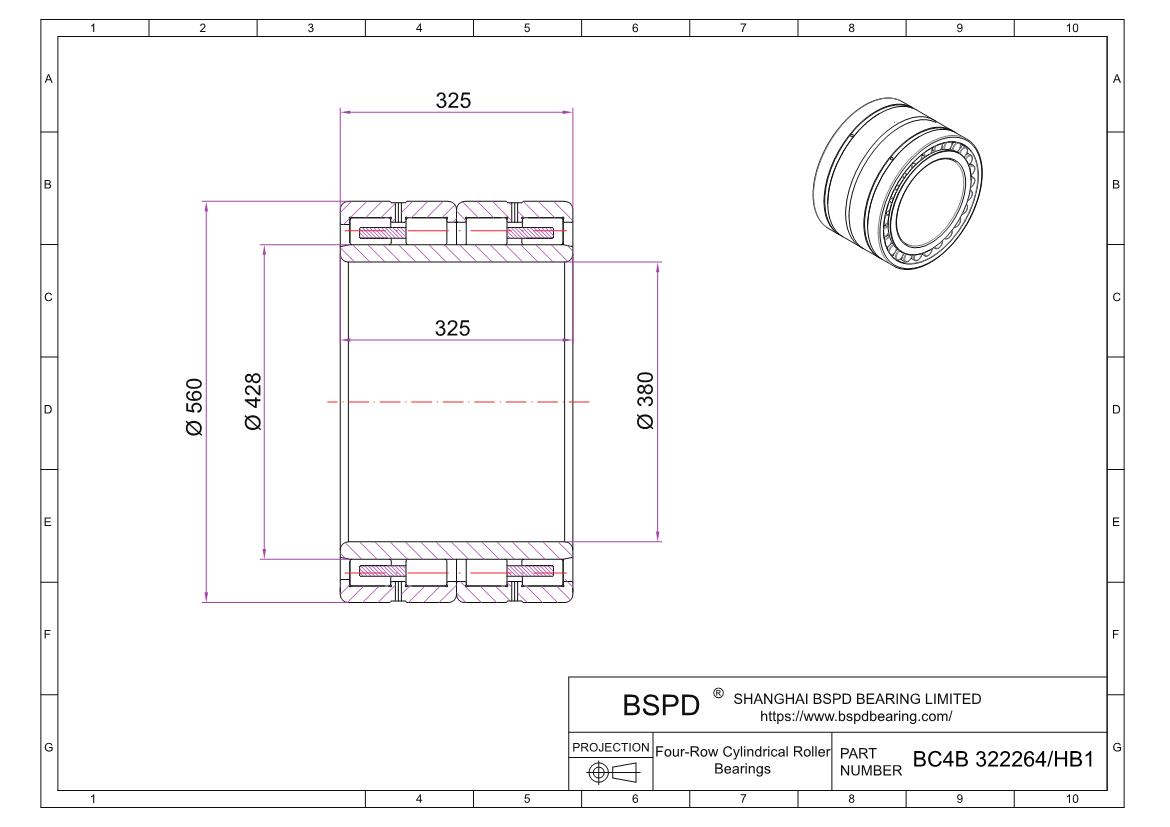

BC4B 322264/HB1 Four-Row Cylindrical Roller Bearings
Dimensions: Bore (Inner) Diameter: 380 mm； Outer Diameter: 560 mm； Width (Thickness): ;

BC4B 322264/HB1
REQUEST FOR QUOTE
* *
Send
Product Attributes
Product NumberBC4B 322264/HB1
System of MeasurementMetric
Roller Bearing TypeCylindrical
For Load DirectionCombined Radial and Thrust
Bore Dia380 mm
Outer Dia560 mm
Total Bearing Width Over Inner Ring(S)(B)325 mm
Total Bearing Width Over Outer Ring(S)(C)325 mm
Dynamic Radial Load5230 kN
Static Radial Load10600 kN
LubricationGrease, Oil
Temperature Range-30° to 110 °C
RoHSCompliant
REACHCompliant
Corner Radius/Chamfer Inner Ring(r1,2)(min#)13 mm
Chamfer Dimension On The Outer Ring(r3,4)(min#)5 mm
Dynamic Load Rating5230 kN
Static Load Rating10600 kN
Fatigue Load Limit(Pu)930 kN
Static Load Rating 10000 kN greater
Mass Bearing270 kg
Raceway Diameter Inner Ring(F)428 mm
Design Variant/FeatureBC4.1/W
Chamfer Angle Inner Ring(α)20 °
Outer Ring Shoulder Diameter(D1)508 mm
BC4B 322264/HB1
