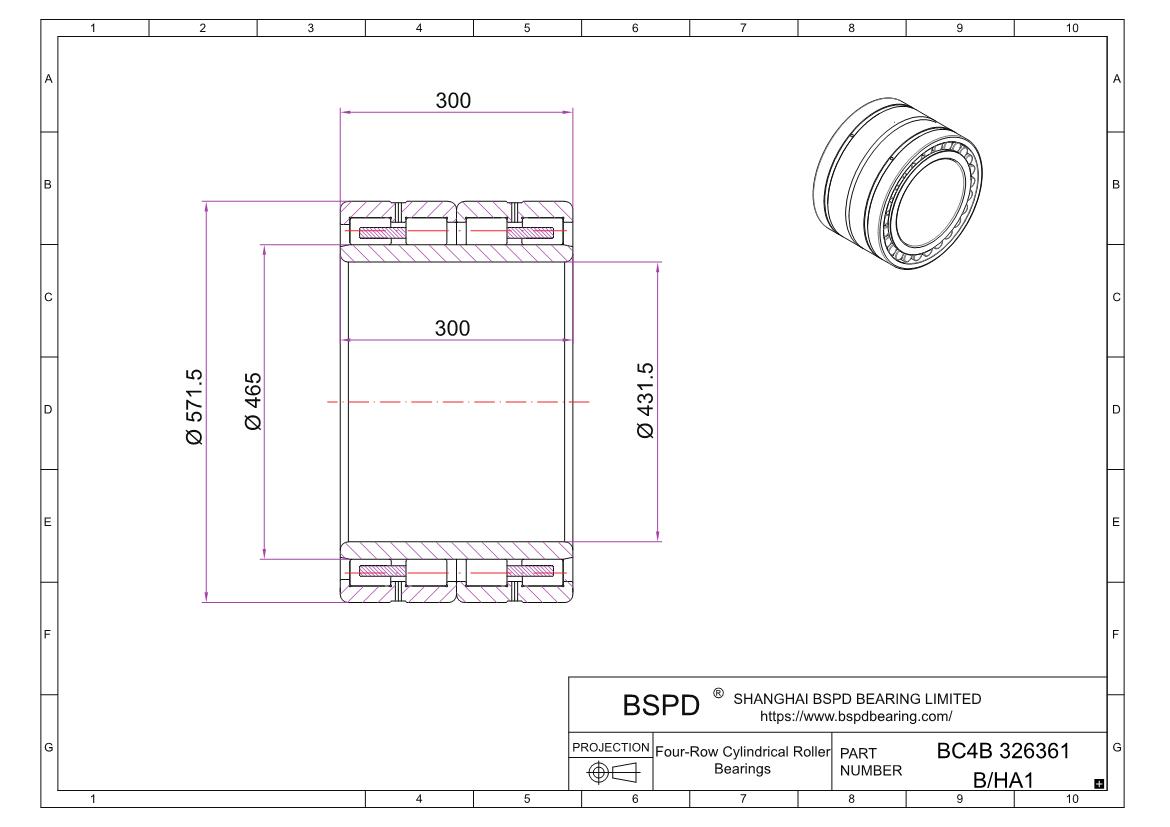

BC4B 326361 B/HA1 Four-Row Cylindrical Roller Bearings
Dimensions: Bore (Inner) Diameter: 431.5 mm； Outer Diameter: 571.5 mm； Width (Thickness): ;

BC4B 326361 B/HA1
REQUEST FOR QUOTE
* *
Send
Product Attributes
Product NumberBC4B 326361 B/HA1
System of MeasurementMetric
Roller Bearing TypeCylindrical
For Load DirectionCombined Radial and Thrust
Bore Dia431.5 mm
Outer Dia571.5 mm
Total Bearing Width Over Inner Ring(S)(B)300 mm
Total Bearing Width Over Outer Ring(S)(C)300 mm
Dynamic Radial Load4460 kN
Static Radial Load10200 kN
LubricationGrease, Oil
Temperature Range-30° to 110 °C
RoHSCompliant
REACHCompliant
Corner Radius/Chamfer Inner Ring(r1,2)(min#)12 mm
Chamfer Dimension On The Outer Ring(r3,4)(min#)2 mm
Dynamic Load Rating4460 kN
Static Load Rating10200 kN
Fatigue Load Limit(Pu)880 kN
Static Load Rating 10000 kN greater
Calculation Factor(Kr)400
Mass Bearing210 kg
Raceway Diameter Inner Ring(F)465 mm
Design Variant/FeatureBC4.12/W33WI
Width of Annular Groove(B)16.7 mm
Chamfer Angle Inner Ring(α)20 °
Outer Ring Shoulder Diameter(D1)530.6 mm
Diameter Lubrication Hole(Outer Ring)(K)9 mm
BC4B 326361 B/HA1
