BCE34-TN
Drawn Cup Needle Roller Bearings
Dimensions: Bore (Inner) Diameter: 0.1875"； Outer Diameter: 0.3437"； Width (Thickness): 0.25";
REQUEST FOR QUOTE
Needle Roller Bearings of similar size
same inner diameter
same outer diameter
same width
Product Attributes
| Bearing Type | Roller |
| Roller Bearing Type | Needle |
| For Load Direction | Radial |
| Construction | Single Row |
| End | Closed |
| System of Measurement | Inch |
| Seal Type | Open |
| Part Number | BCE34-TN |
| For Shaft Diameter | 3/16 " |
| Bore Dia (d) | 3/16 " | 4.7625 mm |

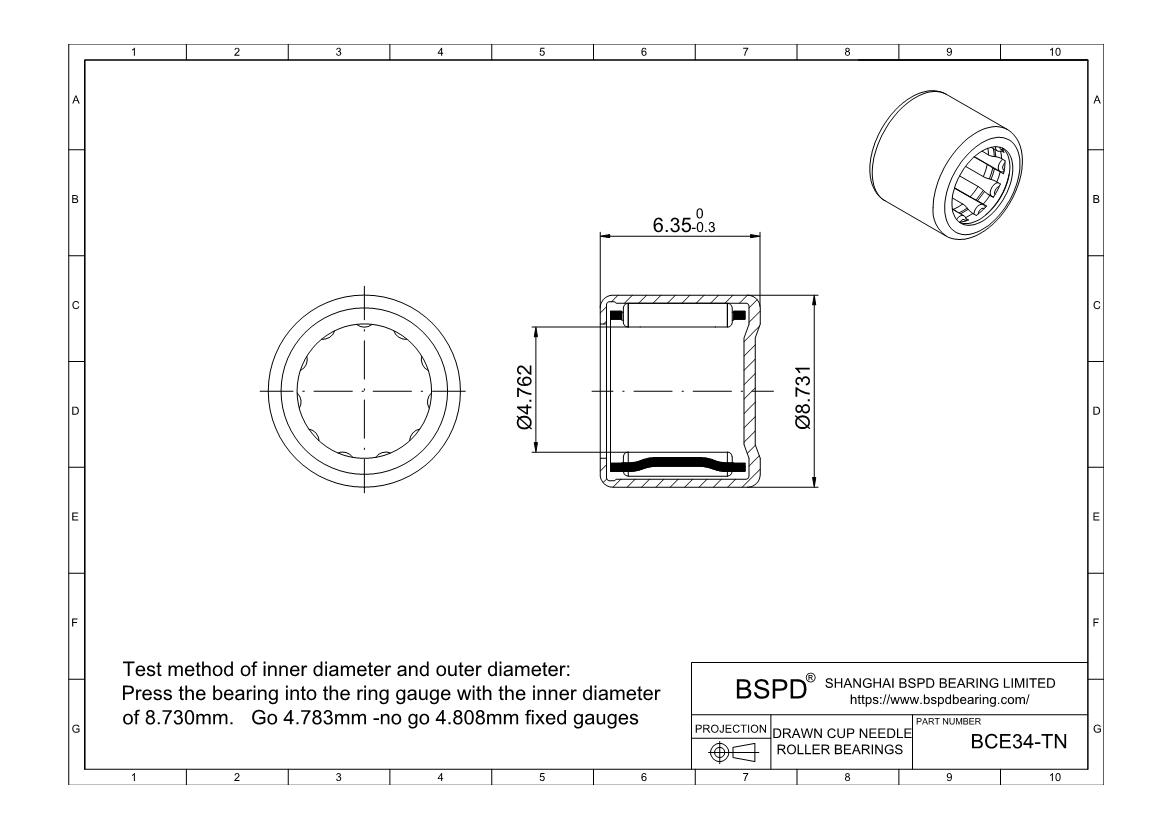

| Bore Dia Tolerance | Refer to note on the right drawing |
| For Housing ID | 8.731mm |
| Outer Dia (D) | 0.3437" | 8.731mm |
| Outer Dia Tolerance | Not Rated |
| Width (B) | 0.25" | 6.35mm |
| Width Tolerance | -0.01" to 0" |
| Ring Material | steel |
| Ball Material | steel |
| Cage Material | PA66 |
| Dynamic Load Rating (Cr) (Newtons) | 1790 N |
| Static Load Rating (Cor) (Newtons) | 1360 N |
| Max Speed (Grease) (RPM) | 21000 |
| Lubrication | Required |
| Lubricant | Grease |
| Shaft Mount Type | Press Fit |
| Temperature Range | -20 to 110 °C |
| RoHS | Compliant |
| Weight (grams) | 1 |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Needle Roller Bearings BCE34-TN ? Drawn Cup Needle Roller Bearings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
