BCH910-P Drawn Cup Needle Roller Bearings
Dimensions: Bore (Inner) Diameter: 0.5625"; Outer Diameter: 0.8125"; Width (Thickness): 0.625";

BCH910-P
REQUEST FOR QUOTE
* *
Send
Product Attributes
Bearing Type Roller
Roller Bearing Type Needle
For Load Direction Radial
Construction Single Row
End Closed
System of Measurement Inch
Seal Type Single seal
Part Number BCH910-P
For Shaft Diameter 9/16 "
Bore Dia (d) 9/16 " | 14.2875 mm

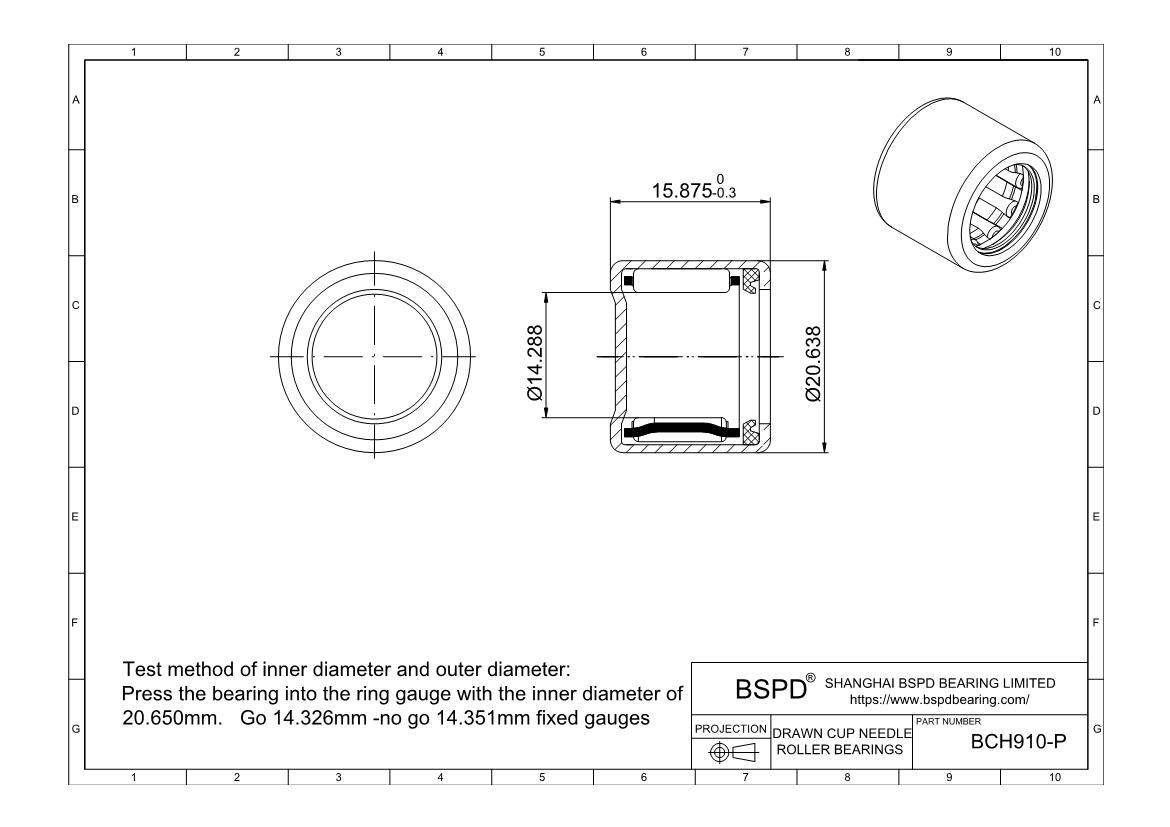

Bore Dia Tolerance Refer to note on the right drawing
For Housing ID 20.638mm
Outer Dia (D) 0.8125" | 20.638mm
Outer Dia Tolerance Not Rated
Width (B) 0.625" | 15.875mm
Width Tolerance -0.01" to 0"
Ring Material steel
Ball Material steel
Cage Material steel
Dynamic Load Rating (Cr) (Newtons) 10900 N
Static Load Rating (Cor) (Newtons) 13300 N
Max Speed (Grease) (RPM) 12000
Lubrication Required
Lubricant Grease
Shaft Mount Type Press Fit
Temperature Range -20 to 110 °C
RoHS Compliant
Weight (grams) 10
BCH910-P
Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings
