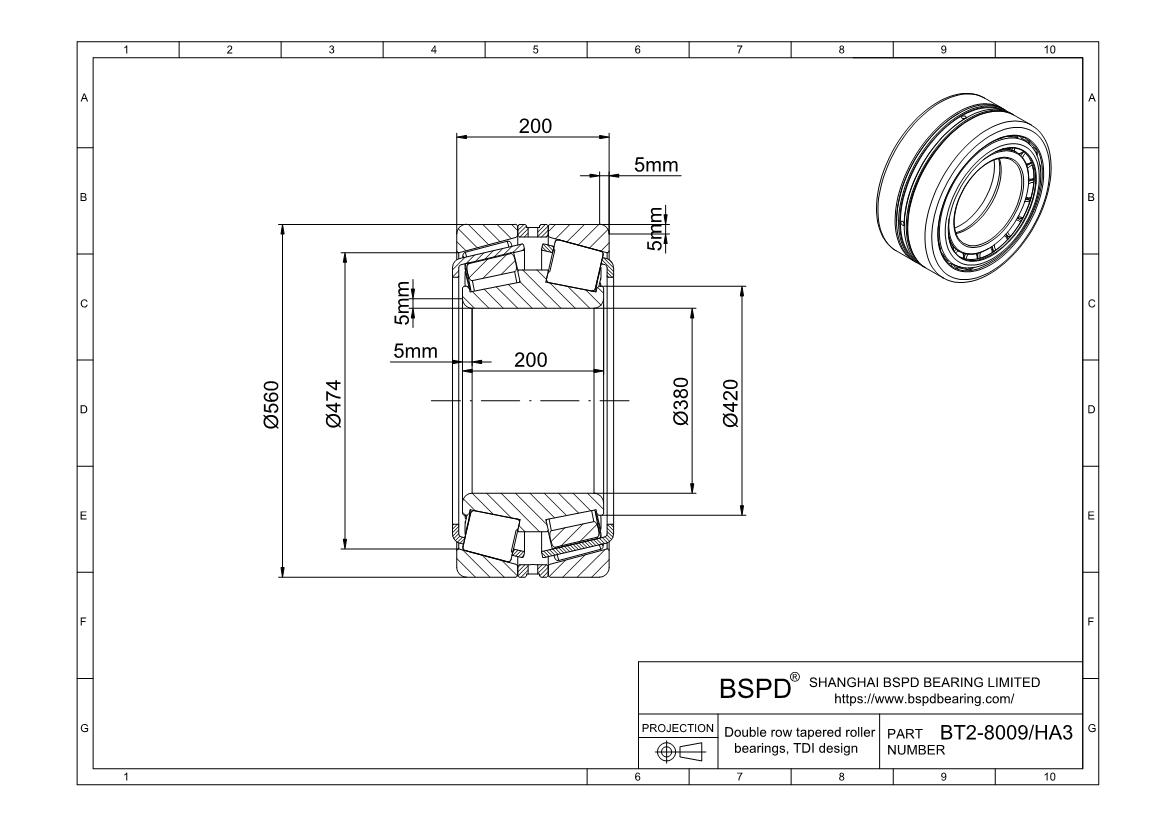

BT2-8009/HA3 Double row tapered roller bearings& TDI design
Dimensions: Bore (Inner) Diameter: 380 mm; Outer Diameter: 560 mm; Width (Thickness): 200 mm;

BT2-8009/HA3
REQUEST FOR QUOTE
* *
Send
Product Attributes
Product NumberBT2-8009/HA3
Bore diameter380 mm
Outside diameter560 mm
Total width200 mm
Shoulder diameter of inner ring420 mm
Width of outer ring200 mm
Chamfer minimum dimension of inner ring (r1,2)5 mm
Chamfer minimum dimension of outer ring (r3,4)5 mm
Basic dynamic load rating (Cr)1617 kn
Basic static load rating (Cor)6550 kN
Fatigue load limit (Pu)520 kN
Mass165 kg
Limiting value (e)0.79
Axial load factor (Y0)0.8
Axial load factor (Y1)0.85
Axial load factor (Y2)1.25
Comparative radial load rating (CF)735
Comparative axial load rating (CFA)582
Thrust factor (K)0.73
BT2-8009/HA3
Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings
What are the types of Tapered roller bearings BT2-8009/HA3 ? Double row tapered roller bearings& TDI design Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:Negotiation
Price:Negotiation
