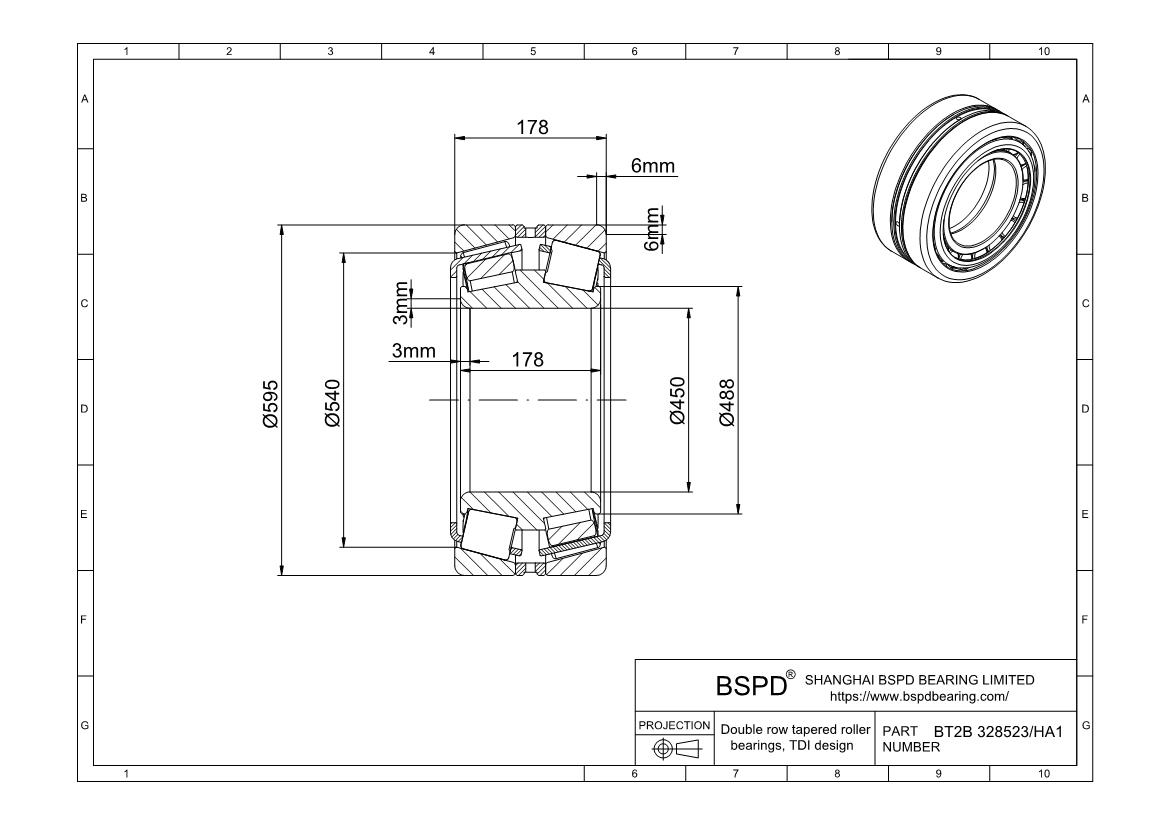

BT2B 328523/HA1 Double row tapered roller bearings& TDI design
Dimensions: Bore (Inner) Diameter: 450 mm； Outer Diameter: 595 mm； Width (Thickness): 178 mm;

BT2B 328523/HA1
REQUEST FOR QUOTE
* *
Send
Product Attributes
Product NumberBT2B 328523/HA1
Bore diameter450 mm
Outside diameter595 mm
Total width178 mm
Shoulder diameter of inner ring488 mm
Width of outer ring178 mm
Chamfer minimum dimension of inner ring (r1,2)3 mm
Chamfer minimum dimension of outer ring (r3,4)6 mm
Basic dynamic load rating (Cr)3169 kn
Basic static load rating (Cor)8150 kN
Fatigue load limit (Pu)610 kN
Mass140 kg
Limiting value (e)0.33
Axial load factor (Y0)2
Axial load factor (Y1)2
Axial load factor (Y2)3
Comparative radial load rating (CF)780
Comparative axial load rating (CFA)256
Thrust factor (K)1.76
BT2B 328523/HA1
Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings
What are the types of Tapered roller bearings BT2B 328523/HA1 ? Double row tapered roller bearings& TDI design Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:Negotiation
Price:Negotiation
  • Fast Delivery     √
  • Best Quality       √
  • Good Price        √
