BT2B 328580/HA1 Double row tapered roller bearings& TDI design

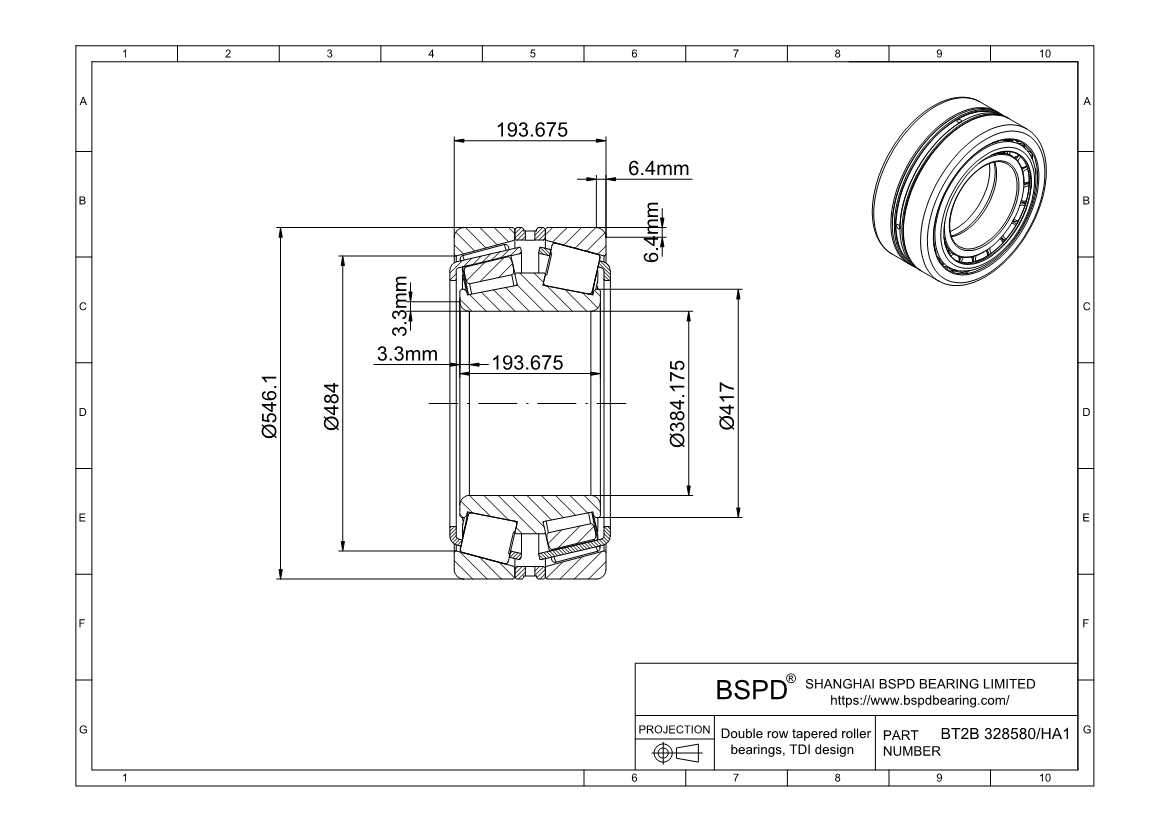

Dimensions: Bore (Inner) Diameter: 384.175 mm； Outer Diameter: 546.1 mm； Width (Thickness): 193.675 mm;

BT2B 328580/HA1
REQUEST FOR QUOTE
* *
Send
Product Attributes
Product NumberBT2B 328580/HA1
Bore diameter384.175 mm
Outside diameter546.1 mm
Total width193.675 mm
Shoulder diameter of inner ring417 mm
Width of outer ring193.675 mm
Chamfer minimum dimension of inner ring (r1,2)3.3 mm
Chamfer minimum dimension of outer ring (r3,4)6.4 mm
Basic dynamic load rating (Cr)3724 kn
Basic static load rating (Cor)8300 kN
Fatigue load limit (Pu)640 kN
Mass166 kg
Limiting value (e)0.33
Axial load factor (Y0)2
Axial load factor (Y1)2
Axial load factor (Y2)3
Comparative radial load rating (CF)915
Comparative axial load rating (CFA)301
Thrust factor (K)1.76
BT2B 328580/HA1
Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings
What are the types of Tapered roller bearings BT2B 328580/HA1 ? Double row tapered roller bearings& TDI design Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:Negotiation
Price:Negotiation
  • Fast Delivery     √
  • Best Quality       √
  • Good Price        √
