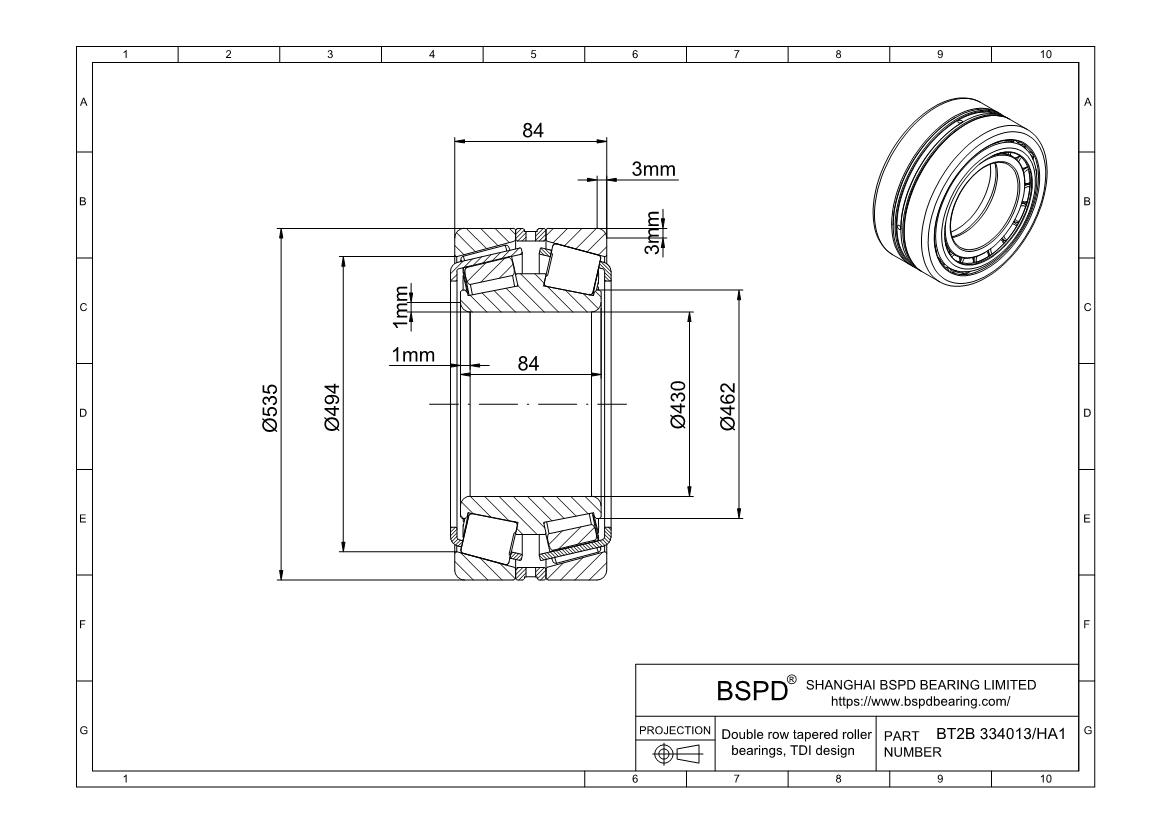

BT2B 334013/HA1 Double row tapered roller bearings& TDI design
Dimensions: Bore (Inner) Diameter: 430 mm； Outer Diameter: 535 mm； Width (Thickness): 84 mm;

BT2B 334013/HA1
REQUEST FOR QUOTE
* *
Send
Product Attributes
Product NumberBT2B 334013/HA1
Bore diameter430 mm
Outside diameter535 mm
Total width84 mm
Shoulder diameter of inner ring462 mm
Width of outer ring84 mm
Chamfer minimum dimension of inner ring (r1,2)1 mm
Chamfer minimum dimension of outer ring (r3,4)3 mm
Basic dynamic load rating (Cr)1080 kn
Basic static load rating (Cor)3000 kN
Fatigue load limit (Pu)240 kN
Mass44.5 kg
Limiting value (e)0.54
Axial load factor (Y0)1.3
Axial load factor (Y1)1.25
Axial load factor (Y2)1.8
Comparative radial load rating (CF)260
Comparative axial load rating (CFA)142
Thrust factor (K)1.06
BT2B 334013/HA1
