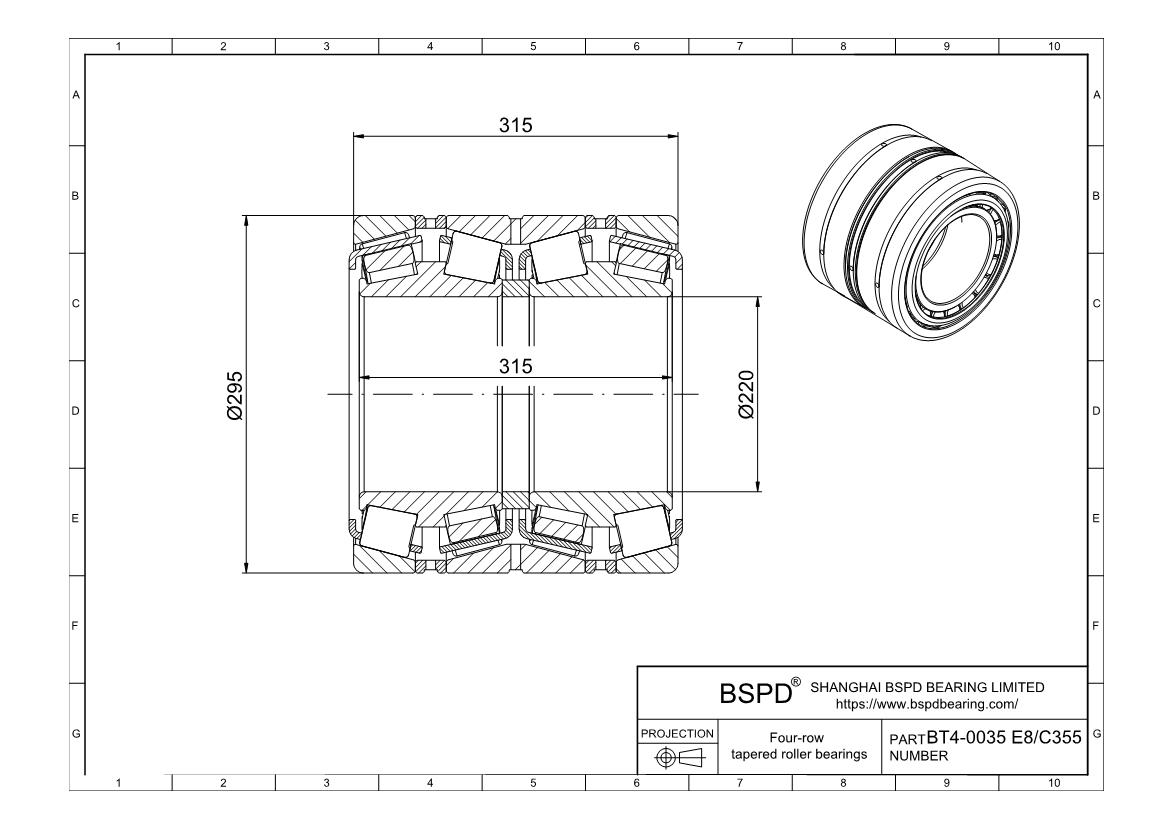

BT4-0035 E8/C355 Four-row tapered roller bearings
Dimensions: Bore (Inner) Diameter: 220 mm； Outer Diameter: 295 mm； Width (Thickness): ;

BT4-0035 E8/C355
REQUEST FOR QUOTE
* *
Send
Product Attributes
Product NumberBT4-0035 E8/C355
System of MeasurementMetric
Bearing TypeRoller
Roller Bearing TypeTapered Roller
TypeBearing
For Load DirectionCombined Radial and Thrust
ConstructionFour-row
Seal TypeOpen
Bore Dia220 mm
Bore Dia Tolerance-0.03mm to 0
Outer Dia295 mm
Outer Dia Tolerance-0.035mm to 0
Total Bearing Width Over Inner Rings315 mm
Total Bearing Width Over Outer Rings315 mm
Ring Material52100 Chrome Steel
Cage MaterialSteel
Roller Material52100 Chrome Steel
Dynamic Radial Load418500 lbf
Static Radial Load911250 lbf
LubricationRequired
Temperature Range-30° to 110 °C
ABEC RatingABEC-1
RoHSCompliant
REACHCompliant
Weight125.44 lb
Radial ClearanceStandard (Available in C3/C4/C5)
