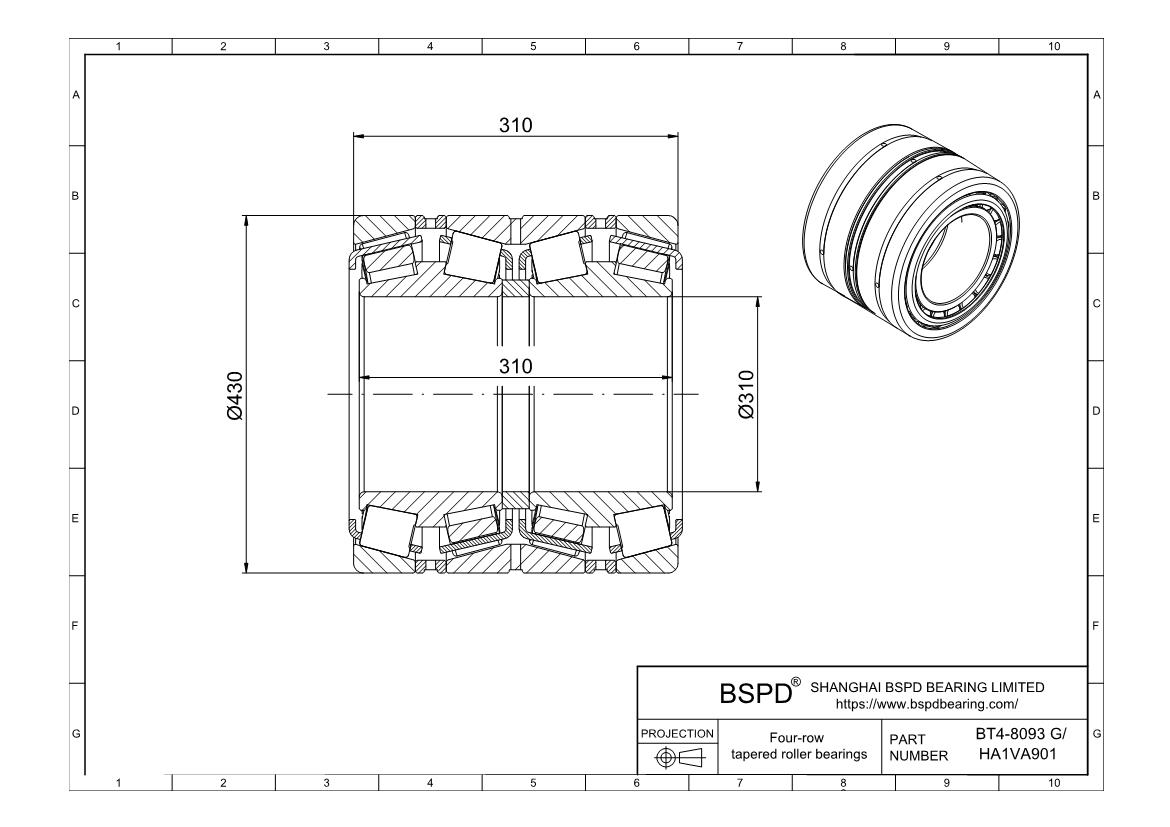

BT4-8093 G/HA1VA901 Four-row tapered roller bearings
Dimensions: Bore (Inner) Diameter: 310 mm； Outer Diameter: 430 mm； Width (Thickness): ;

BT4-8093 G/HA1VA901
REQUEST FOR QUOTE
* *
Send
Product Attributes
Product NumberBT4-8093 G/HA1VA901
System of MeasurementMetric
Bearing TypeRoller
Roller Bearing TypeTapered Roller
TypeBearing
For Load DirectionCombined Radial and Thrust
ConstructionFour-row
Seal TypeOpen
Bore Dia310 mm
Bore Dia Tolerance-0.035mm to 0
Outer Dia430 mm
Outer Dia Tolerance-0.045mm to 0
Total Bearing Width Over Inner Rings310 mm
Total Bearing Width Over Outer Rings310 mm
Ring Material52100 Chrome Steel
Cage MaterialSteel
Roller Material52100 Chrome Steel
Dynamic Radial Load643500 lbf
Static Radial Load1473750 lbf
LubricationRequired
Temperature Range-30° to 110 °C
ABEC RatingABEC-1
RoHSCompliant
REACHCompliant
Weight284.40 lb
Radial ClearanceStandard (Available in C3/C4/C5)
BT4-8093 G/HA1VA901
