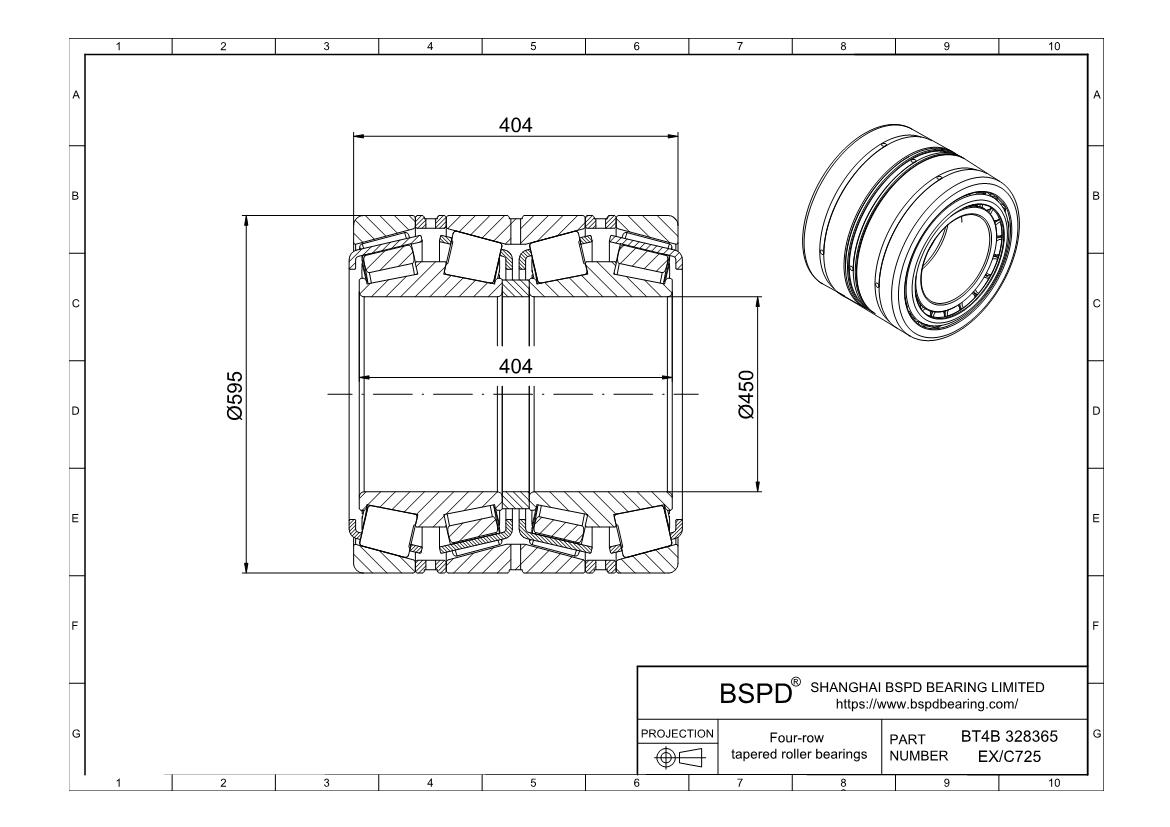

BT4B 328365 EX/C725 Four-row tapered roller bearings
Dimensions: Bore (Inner) Diameter: 450 mm; Outer Diameter: 595 mm; Width (Thickness): ;

BT4B 328365 EX/C725
REQUEST FOR QUOTE
* *
Send
Product Attributes
Product NumberBT4B 328365 EX/C725
System of MeasurementMetric
Bearing TypeRoller
Roller Bearing TypeTapered Roller
TypeBearing
For Load DirectionCombined Radial and Thrust
ConstructionFour-row
Seal TypeOpen
Bore Dia450 mm
Bore Dia Tolerance-0.045mm to 0
Outer Dia595 mm
Outer Dia Tolerance-0.05mm to 0
Total Bearing Width Over Inner Rings404 mm
Total Bearing Width Over Outer Rings404 mm
Ring Material52100 Chrome Steel
Cage MaterialSteel
Roller Material52100 Chrome Steel
Dynamic Radial Load1530000 lbf
Static Radial Load3667500 lbf
LubricationRequired
Temperature Range-30° to 110 °C
ABEC RatingABEC-1
RoHSCompliant
REACHCompliant
Weight668.00 lb
Radial ClearanceStandard (Available in C3/C4/C5)
BT4B 328365 EX/C725
Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings
