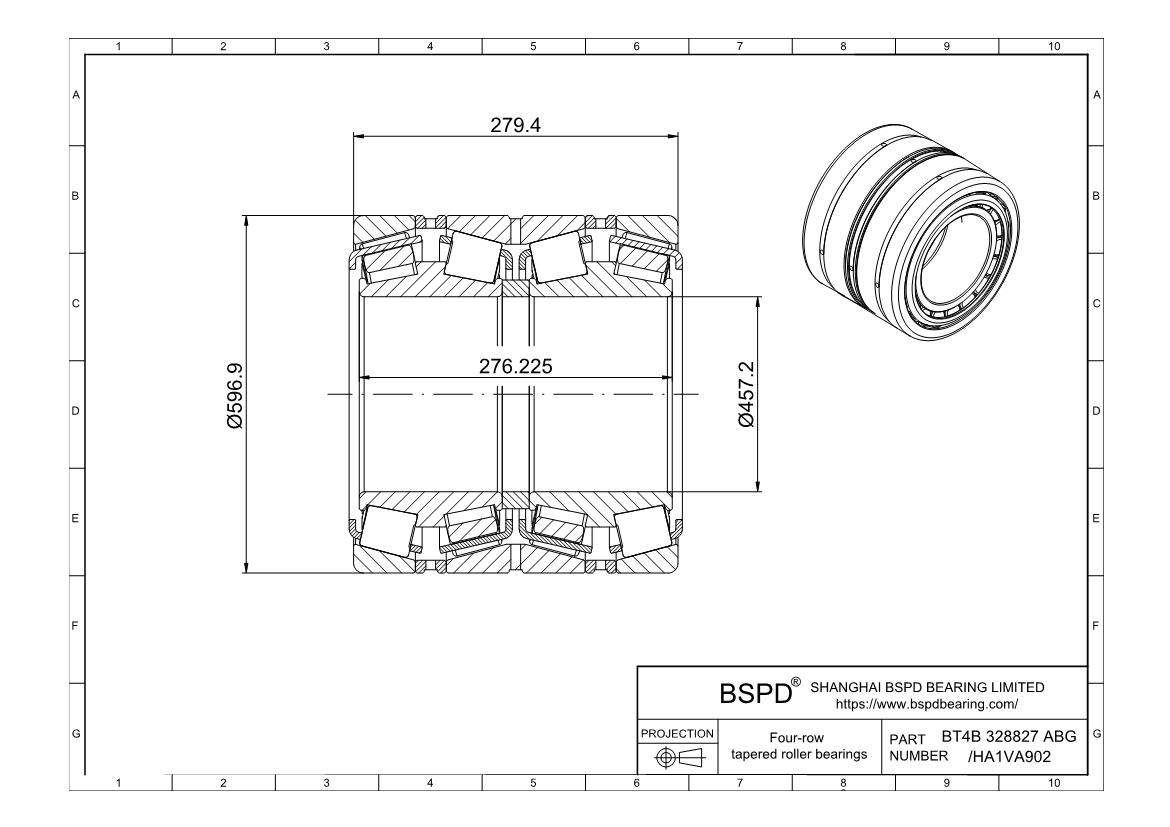

BT4B 328827 ABG/HA1VA902 Four-row tapered roller bearings
Dimensions: Bore (Inner) Diameter: 457.2 mm； Outer Diameter: 596.9 mm； Width (Thickness): ;

BT4B 328827 ABG/HA1VA902
REQUEST FOR QUOTE
* *
Send
Product Attributes
Product NumberBT4B 328827 ABG/HA1VA902
System of MeasurementMetric
Bearing TypeRoller
Roller Bearing TypeTapered Roller
TypeBearing
For Load DirectionCombined Radial and Thrust
ConstructionFour-row
Seal TypeOpen
Bore Dia457.2 mm
Bore Dia Tolerance-0.045mm to 0
Outer Dia596.9 mm
Outer Dia Tolerance-0.05mm to 0
Total Bearing Width Over Inner Rings276.225 mm
Total Bearing Width Over Outer Rings279.4 mm
Ring Material52100 Chrome Steel
Cage MaterialSteel
Roller Material52100 Chrome Steel
Dynamic Radial Load965250 lbf
Static Radial Load2250000 lbf
LubricationRequired
Temperature Range-30° to 110 °C
ABEC RatingABEC-1
RoHSCompliant
REACHCompliant
Weight418.88 lb
Radial ClearanceStandard (Available in C3/C4/C5)
BT4B 328827 ABG/HA1VA902
