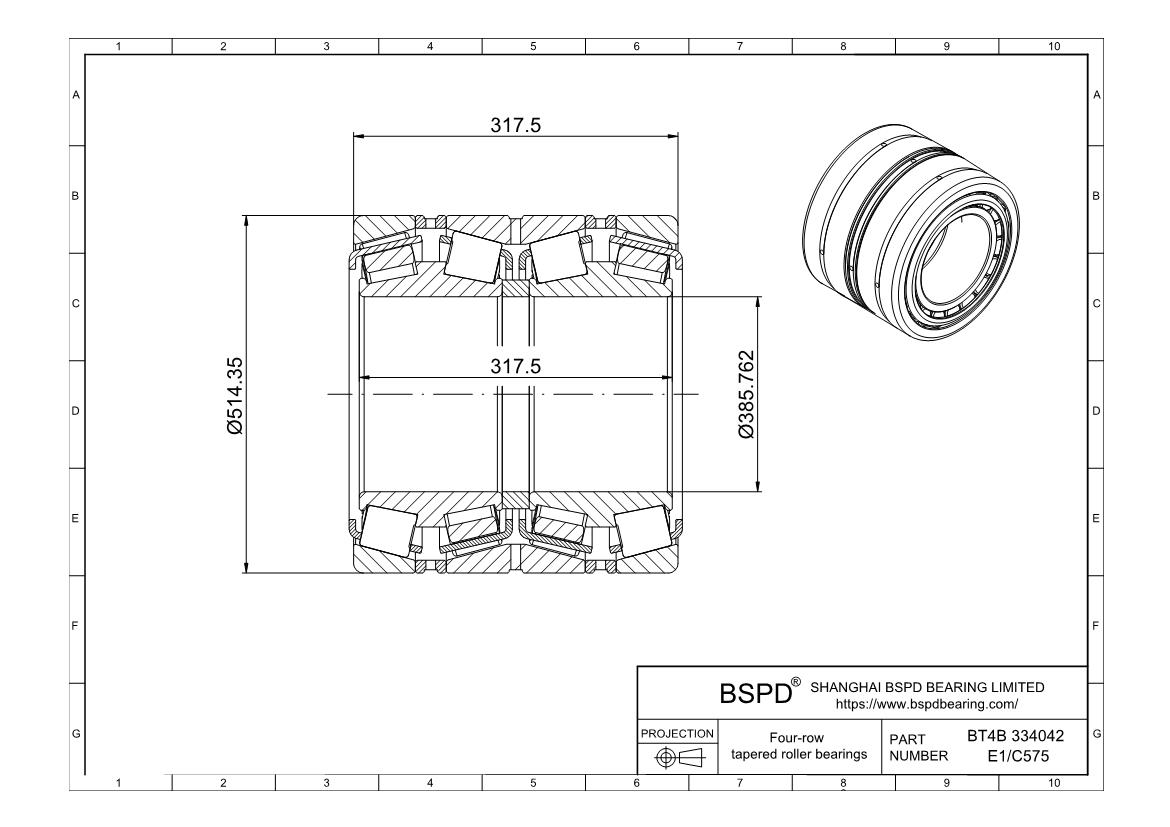

BT4B 334042 E1/C575 Four-row tapered roller bearings
Dimensions: Bore (Inner) Diameter: 385.762 mm; Outer Diameter: 514.35 mm; Width (Thickness): ;

BT4B 334042 E1/C575
REQUEST FOR QUOTE
* *
Send
Product Attributes
Product NumberBT4B 334042 E1/C575
System of MeasurementMetric
Bearing TypeRoller
Roller Bearing TypeTapered Roller
TypeBearing
For Load DirectionCombined Radial and Thrust
ConstructionFour-row
Seal TypeOpen
Bore Dia385.762 mm
Bore Dia Tolerance-0.04mm to 0
Outer Dia514.35 mm
Outer Dia Tolerance-0.05mm to 0
Total Bearing Width Over Inner Rings317.5 mm
Total Bearing Width Over Outer Rings317.5 mm
Ring Material52100 Chrome Steel
Cage MaterialSteel
Roller Material52100 Chrome Steel
Dynamic Radial Load879750 lbf
Static Radial Load2250000 lbf
LubricationRequired
Temperature Range-30° to 110 °C
ABEC RatingABEC-1
RoHSCompliant
REACHCompliant
Weight385.81 lb
Radial ClearanceStandard (Available in C3/C4/C5)
BT4B 334042 E1/C575
Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings
