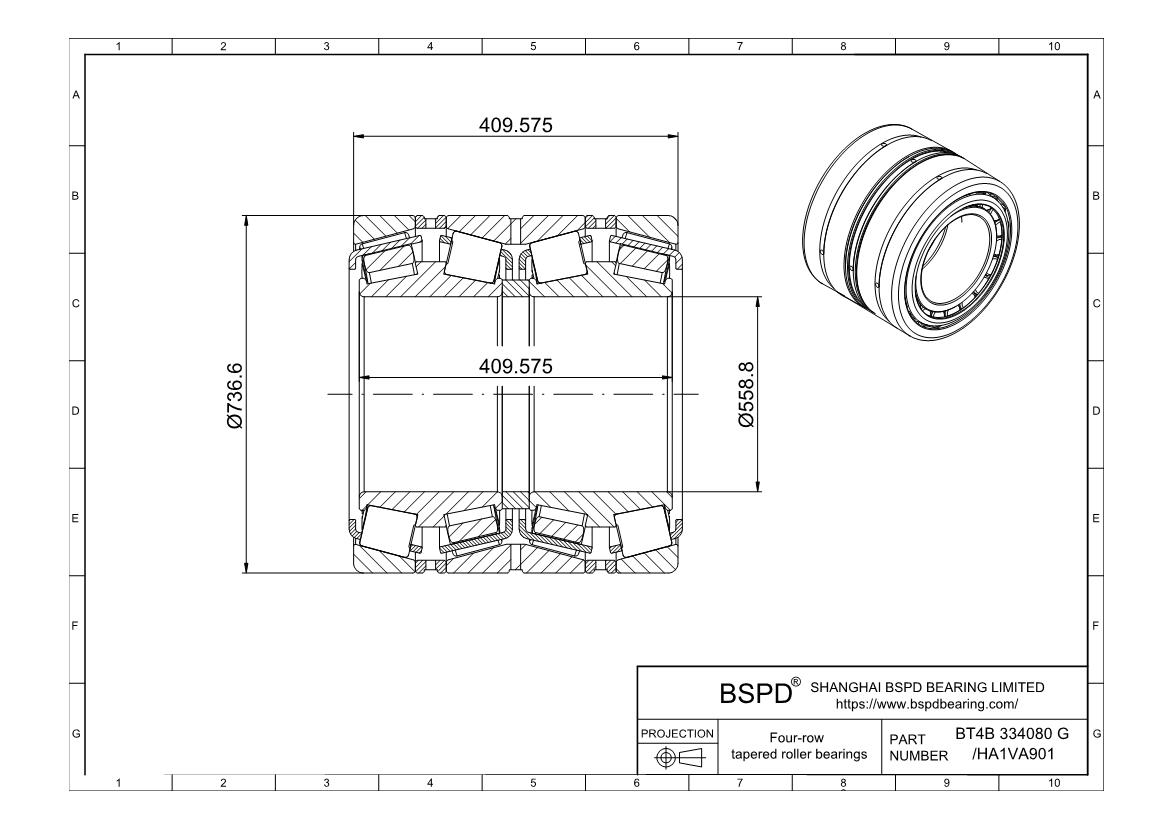

BT4B 334080 G/HA1VA901 Four-row tapered roller bearings
Dimensions: Bore (Inner) Diameter: 558.8 mm; Outer Diameter: 736.6 mm; Width (Thickness): ;

BT4B 334080 G/HA1VA901
REQUEST FOR QUOTE
* *
Send
Product Attributes
Product NumberBT4B 334080 G/HA1VA901
System of MeasurementMetric
Bearing TypeRoller
Roller Bearing TypeTapered Roller
TypeBearing
For Load DirectionCombined Radial and Thrust
ConstructionFour-row
Seal TypeOpen
Bore Dia558.8 mm
Bore Dia Tolerance-0.05mm to 0
Outer Dia736.6 mm
Outer Dia Tolerance-0.075mm to 0
Total Bearing Width Over Inner Rings409.575 mm
Total Bearing Width Over Outer Rings409.575 mm
Ring Material52100 Chrome Steel
Cage MaterialSteel
Roller Material52100 Chrome Steel
Dynamic Radial Load1485000 lbf
Static Radial Load4500000 lbf
LubricationRequired
Temperature Range-30° to 110 °C
ABEC RatingABEC-1
RoHSCompliant
REACHCompliant
Weight1047.20 lb
Radial ClearanceStandard (Available in C3/C4/C5)
BT4B 334080 G/HA1VA901
Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings
