C060806 Needle Roller And Cage Assemblies

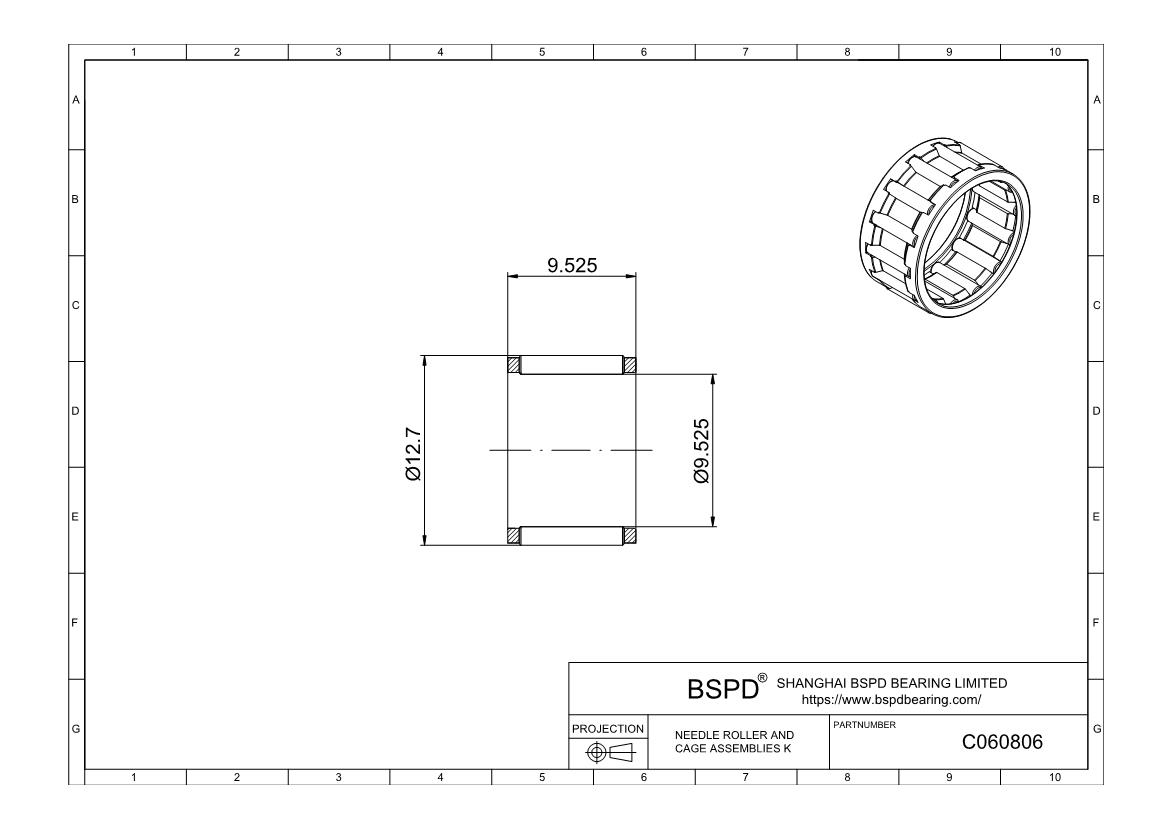

Dimensions: Bore (Inner) Diameter: 9,525 mm; Outer Diameter: 12,7 mm; Width (Thickness): 9,525 mm;

C060806
REQUEST FOR QUOTE
* *
Send
Product Attributes
Bearing Type Needle
Construction Single Row
Seal Type Open
System of Measurement Inch
Part Number C060806
Fw 9,525  mm
Ew 12,7  mm
Bc 9,525  mm
Needle Material Steel
Cage Material Steel
Dynamic Load Rating (Cr) (Newtons) 4000  N
Static Load Rating (Cor) (Newtons) 4200  N
Fatigue Load Rating (Cur) (Newtons)
Max Speed (RPM) 30000  1/min
Temperature Range -30° to 110 °C
RoHS Compliant
Weight (g) 2,5 g
C060806
