F10-18 Miniature Bearing

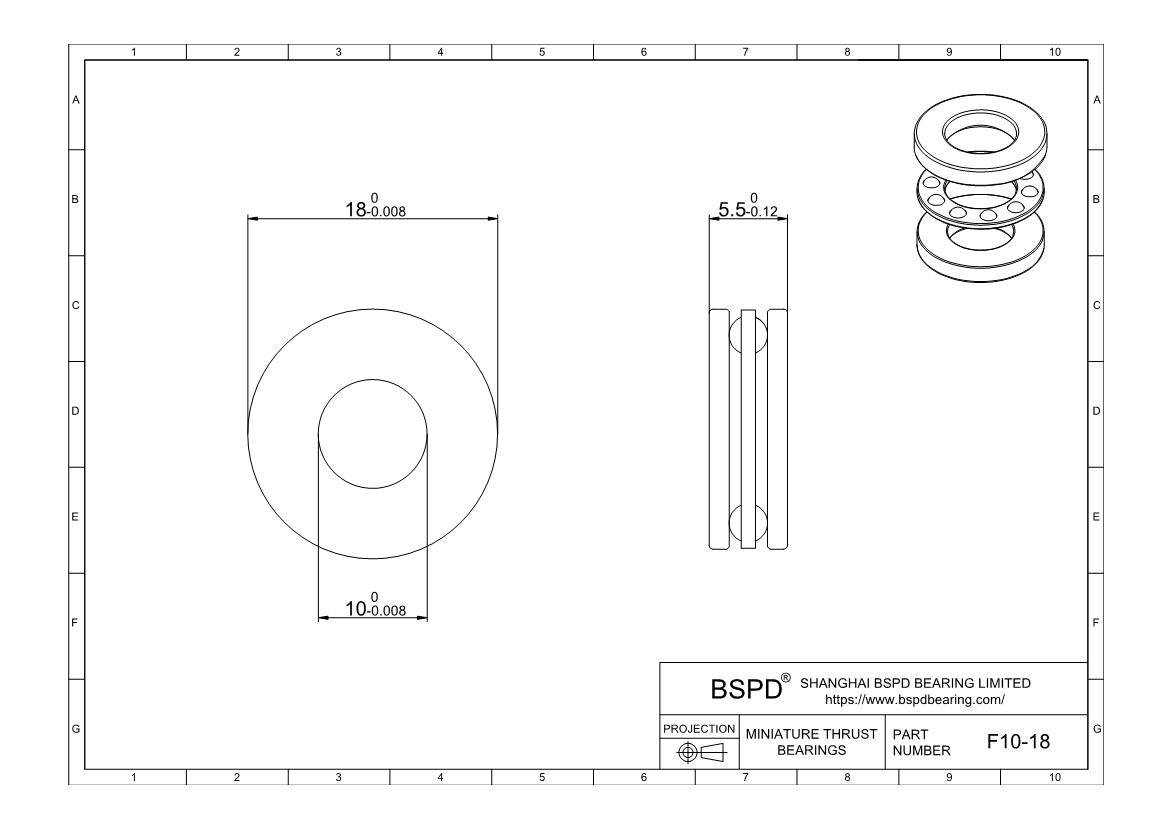

Dimensions: Bore (Inner) Diameter: 10 mm; Outer Diameter: 18 mm; Width (Thickness): 5.5 mm;

F10-18
Slewing Bearings of similar size
same inner diameter
Product Attributes
Bearing Type Ball
For Load Direction Thrust
Seal Type Open
Grooved with flat raceway
Part Number F10-18
For Shaft Diameter 10 mm
Bore Dia (d) 10 mm
Bore Dia Tolerance -0.008mm to 0
For Housing ID 18
Outer Dia (D) 18
Outer Dia Tolerance -0.008mm to 0
Height 5.5
Height Tolerance -0.12mm to 0
Washer Material 52100 Chrome steel
Ball Material 52100 Chrome steel
Cage Material Bronze
Dynamic Load Rating (Cr) (Newtons) 2230
Static Load Rating (Cor) (Newtons) 2721
Max Speed (Grease) (X1000 RPM) 2.5
Max Speed (Oil) (X1000 RPM)  4.5
Lubrication Required
Temperature Range -30° to 110 °C
RoHS Compliant
Ball Qty 10
Ball Dia 2.381 mm
Weight (grams) 6
