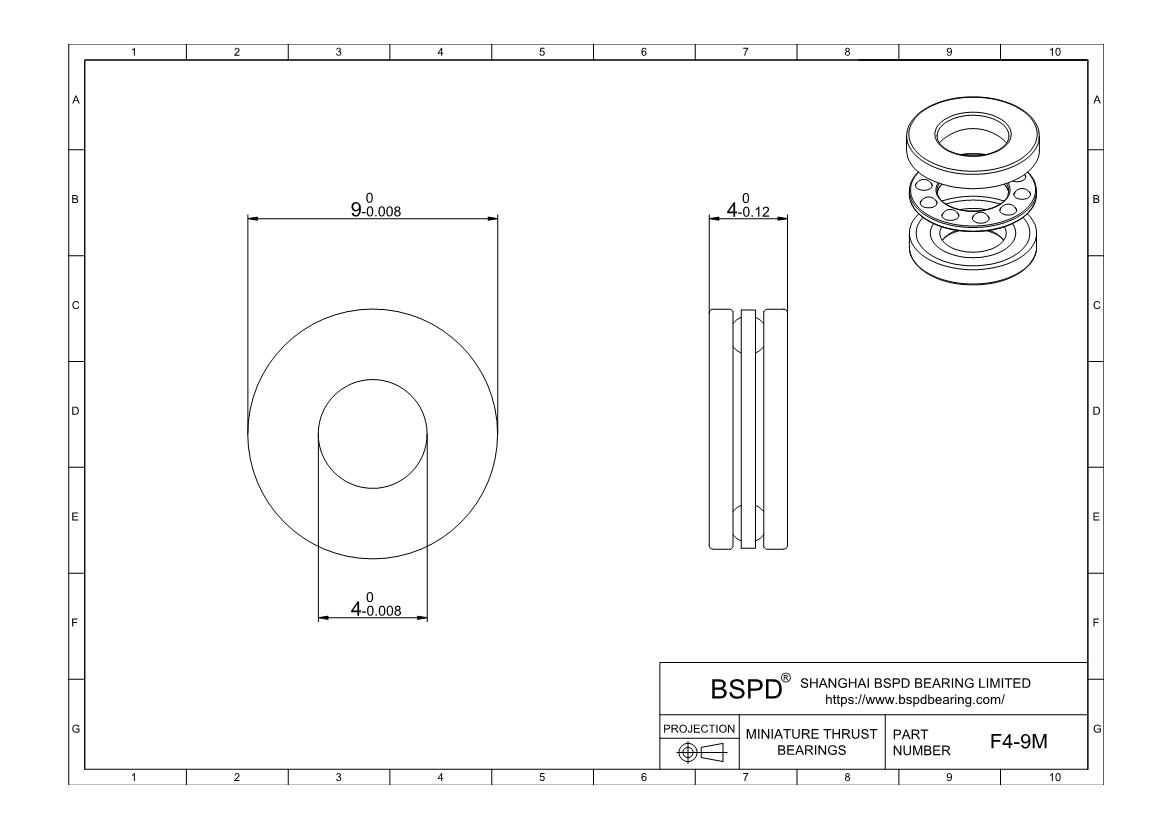

F4-9M Miniature Bearing
Dimensions: Bore (Inner) Diameter: 4 mm; Outer Diameter: 9 mm; Width (Thickness): 4 mm;

F4-9M
Slewing Bearings of similar size
same inner diameter
same outer diameter
same width
Product Attributes
Bearing Type Ball
For Load Direction Thrust
Seal Type Open
Grooved with grooved raceway
Part Number F4-9M
For Shaft Diameter 4 mm
Bore Dia (d) 4 mm
Bore Dia Tolerance -0.008mm to 0
For Housing ID 9
Outer Dia (D) 9
Outer Dia Tolerance -0.008mm to 0
Height 4
Height Tolerance -0.12mm to 0
Washer Material 52100 Chrome steel
Ball Material 52100 Chrome steel
Cage Material Bronze
Dynamic Load Rating (Cr) (Newtons) 800
Static Load Rating (Cor) (Newtons) 520
Max Speed (Grease) (X1000 RPM) 8
Max Speed (Oil) (X1000 RPM)  12
Lubrication Required
Temperature Range -30° to 110 °C
RoHS Compliant
Ball Qty 6
Ball Dia 1.588 mm
Weight (grams) 1.2
F4-9M
