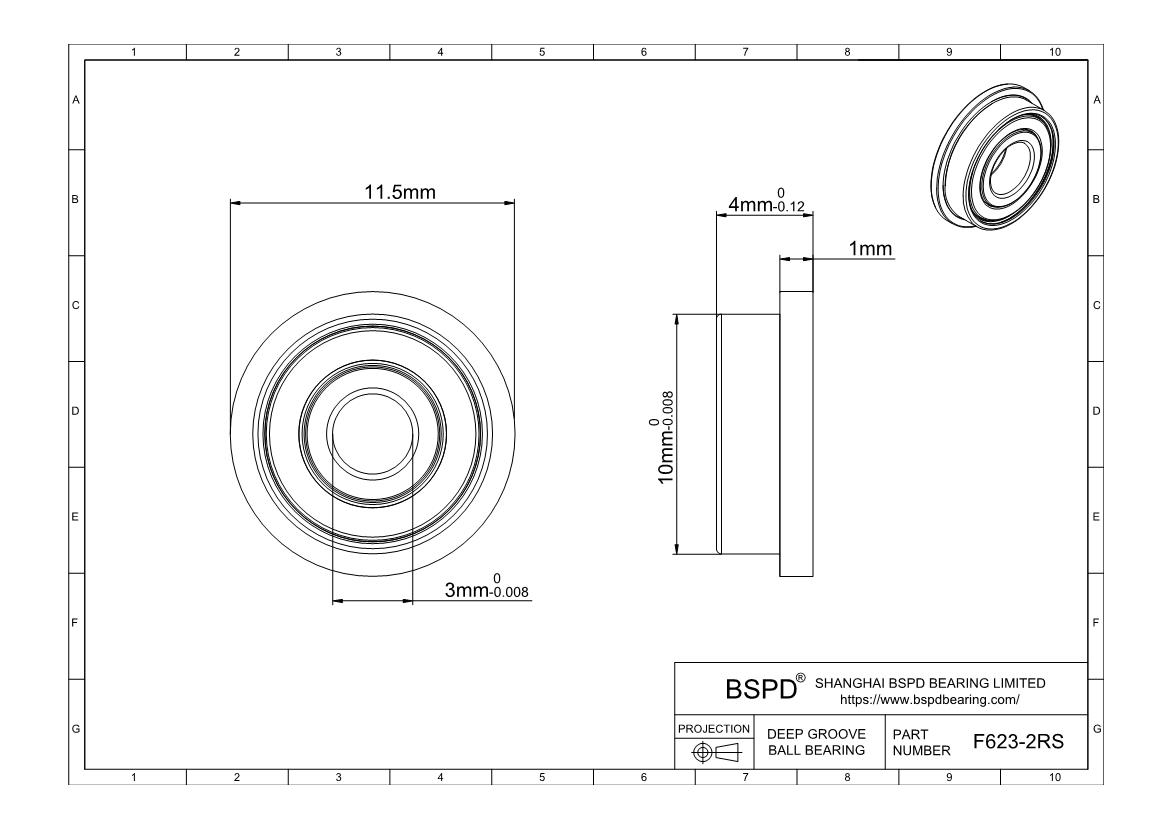

F623-2RS Miniature Bearing
Dimensions: Bore (Inner) Diameter: 3 mm； Outer Diameter: 10 mm； Width (Thickness): 4 mm;

F623-2RS
ball bearings of similar size
Product Attributes
Bearing Type Ball
For Load Direction Radial
Construction Single Row
Ball Bearing Type Flanged
Seal Type Sealed
Part Number F623 2rs
For Shaft Diameter 3 mm
Bore Dia (d) 3 mm
Bore Dia Tolerance -0.008mm to 0
For Housing ID 10mm
Outer Dia (D) 10mm
Outer Dia Tolerance -0.008mm to 0
Width (B) 4mm
Width Tolerance -0.12mm to 0
Flange OD 11.5mm
Flange Thickness 1mm
Ring Material 52100 Chrome steel
Ball Material 52100 Chrome steel
Cage Material 300 Series Stainless Steel
Shield Material 300 Series Stainless Steel
Dynamic Load Rating (Cr) (Newtons) 536
Static Load Rating (Cor) (Newtons) 175
Max Speed (Grease) (X1000 RPM) 50
Max Speed (Oil) (X1000 RPM)  60
Lubrication Required
Shaft Mount Type Press Fit
Temperature Range -30° to 110 °C
ABEC Rating ABEC-1
Radial Clearance Trade No. C0
Radial Clearance 0.002mm to 0.013mm
RoHS Compliant
Ball Qty 7
Ball Dia 1.5880mm
Weight (grams) 1.85
F623-2RS
