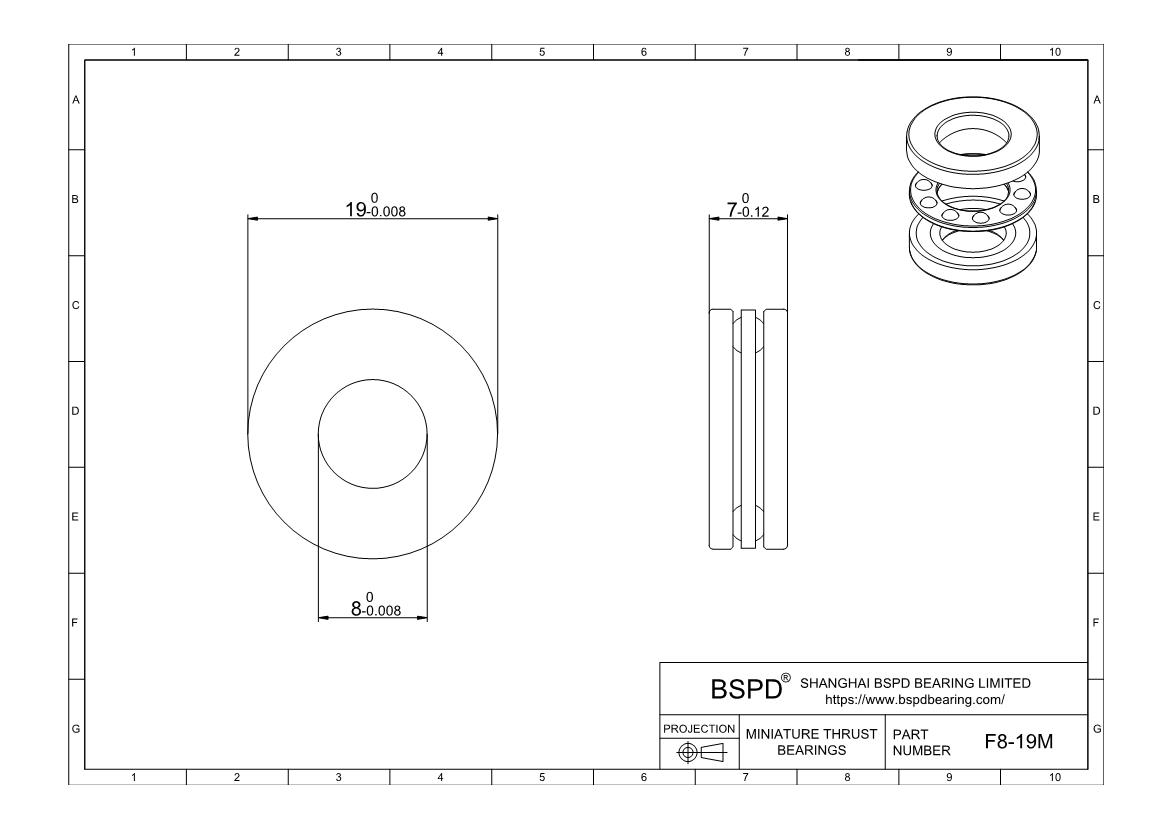

F8-19M Miniature Bearing
Dimensions: Bore (Inner) Diameter: 8 mm; Outer Diameter: 19 mm; Width (Thickness): 7 mm;

F8-19M
Slewing Bearings of similar size
same inner diameter
same outer diameter
same width
Product Attributes
Bearing Type Ball
For Load Direction Thrust
Seal Type Open
Grooved with grooved raceway
Part Number F8-19M
For Shaft Diameter 8 mm
Bore Dia (d) 8 mm
Bore Dia Tolerance -0.008mm to 0
For Housing ID 19
Outer Dia (D) 19
Outer Dia Tolerance -0.008mm to 0
Height 7
Height Tolerance -0.12mm to 0
Washer Material 52100 Chrome steel
Ball Material 52100 Chrome steel
Cage Material Bronze
Dynamic Load Rating (Cr) (Newtons) 3452
Static Load Rating (Cor) (Newtons) 3000
Max Speed (Grease) (X1000 RPM) 3
Max Speed (Oil) (X1000 RPM)  5
Lubrication Required
Temperature Range -30° to 110 °C
RoHS Compliant
Ball Qty 8
Ball Dia 3.175 mm
Weight (grams) 9.1
F8-19M
