FR166 Miniature Bearing

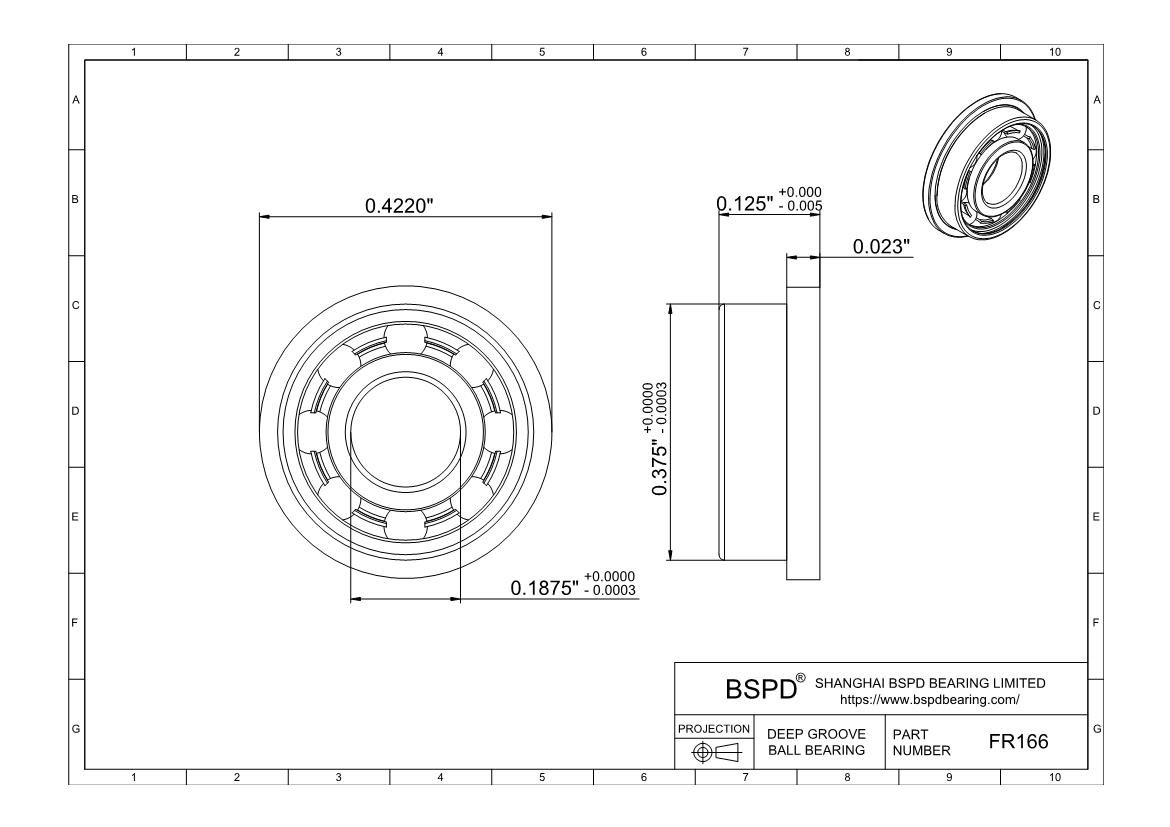

Dimensions: Bore (Inner) Diameter: 0.1875"; Outer Diameter: 0.3750"; Width (Thickness): 0.1250";

FR166
Slewing Bearings of similar size
same inner diameter
Product Attributes
Bearing Type Ball
For Load Direction Radial
Construction Single Row
Ball Bearing Type Flanged
Seal Type Open
Part Number FR166
For Shaft Diameter 3/16"
ID 0.1875" | 4.763 mm
ID Tolerance -0.0003" to 0" | -0.008mm to 0
For Housing ID 3/8"
OD 0.3750" | 9.525 mm
OD Tolerance -0.0003" to 0" | -0.008mm to 0
Width (B) 0.1250" | 3.175 mm
Width Tolerance -0.005" to 0" | -0.12mm to 0
Flange OD 0.4220" | 10.719 mm
Flange Thickness 0.023" | 0.584 mm
Ring Material 52100 Chrome steel
Ball Material 52100 Chrome steel
Cage Material 300 Series Stainless Steel
Shield Material 300 Series Stainless Steel
Dynamic Load Rating (Cr) (Newtons) 605.09
Static Load Rating (Cor) (Newtons) 218.01
Max Speed (Grease) (X1000 RPM) 50
Max Speed (Oil) (X1000 RPM)  60
Lubrication Required
Shaft Mount Type Press Fit
Temperature Range -30° to 110 °C
ABEC Rating ABEC-1
Radial Clearance Trade No. C0
Radial Clearance 0.00008" to 0.0005" | 0.002mm to 0.013mm
RoHS Compliant
Ball Qty 8
Ball Dia 1.588mm
Weight (grams) 0.9
FR166
Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings
What are the types of ball bearings FR166 ? Miniature Bearing Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
