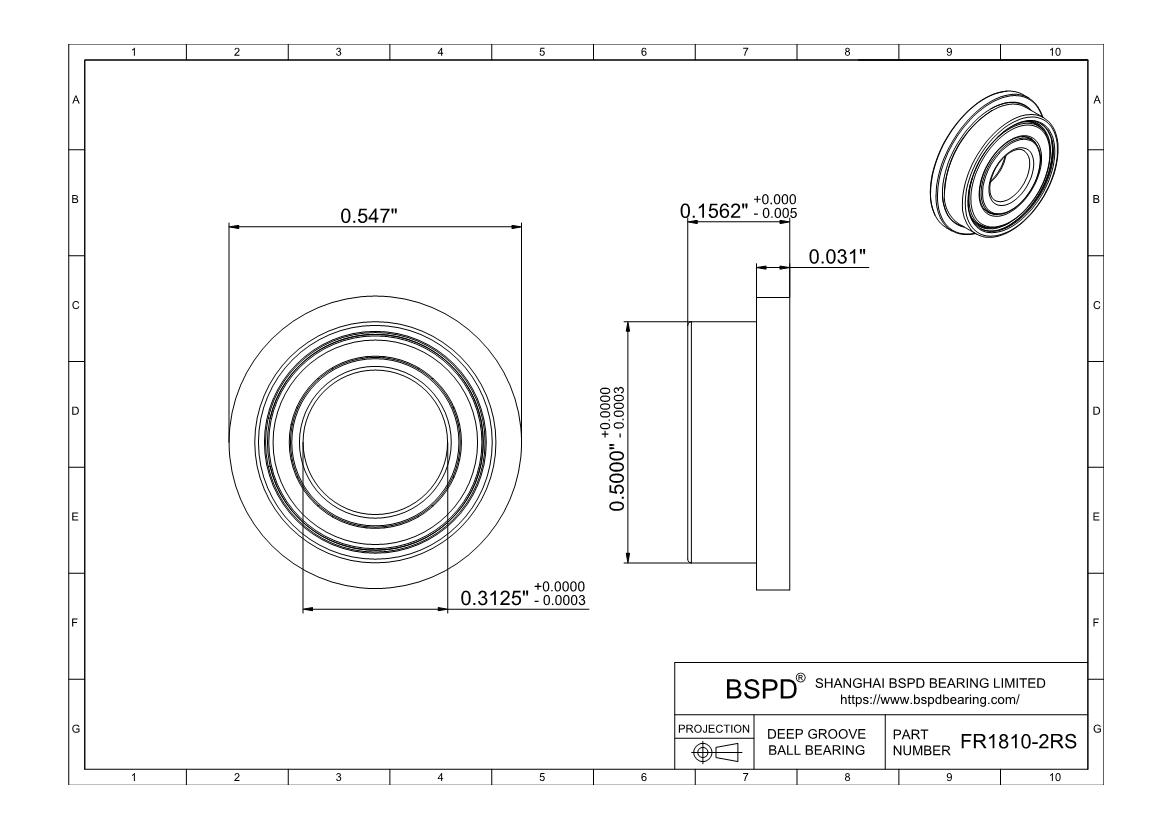

FR1810-2RS Miniature Bearing
Dimensions: Bore (Inner) Diameter: 0.3125"; Outer Diameter: 0.5000"; Width (Thickness): 0.1562";

Product Attributes
Bearing Type Ball
For Load Direction Radial
Construction Single Row
Ball Bearing Type Flanged
Seal Type Sealed
Part Number FR1810 2rs
For Shaft Diameter 5/16"
ID 0.3125" | 7.938 mm
ID Tolerance -0.0003" to 0" | -0.008mm to 0
For Housing ID 1/2"
OD 0.5000" | 12.7 mm
OD Tolerance -0.0003" to 0" | -0.008mm to 0
Width (B) 0.1562" | 3.967 mm
Width Tolerance -0.005" to 0" | -0.12mm to 0
Flange OD 0.5470" | 13.894 mm
Flange Thickness 0.031" | 0.787 mm
Ring Material 52100 Chrome steel
Ball Material 52100 Chrome steel
Cage Material 300 Series Stainless Steel
Shield Material 300 Series Stainless Steel
Dynamic Load Rating (Cr) (Newtons) 462.72
Static Load Rating (Cor) (Newtons) 222.46
Max Speed (Grease) (X1000 RPM) 40
Max Speed (Oil) (X1000 RPM)  48
Lubrication Required
Shaft Mount Type Press Fit
Temperature Range -30° to 110 °C
ABEC Rating ABEC-1
Radial Clearance Trade No. C0
Radial Clearance 0.00008" to 0.0005" | 0.002mm to 0.013mm
RoHS Compliant
Ball Qty 12
Ball Dia 1.199mm
Weight (grams) 1.72
FR1810-2RS
