FR6 Miniature Bearing

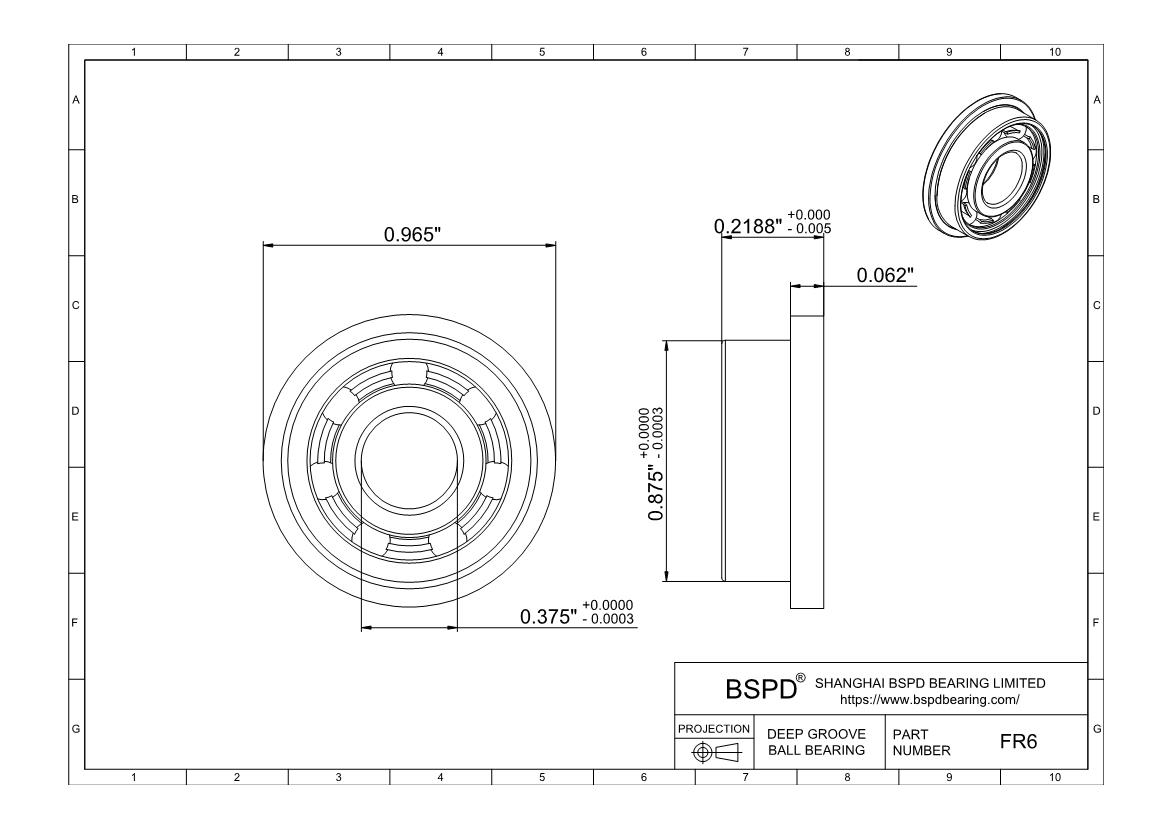

Dimensions: Bore (Inner) Diameter: 0.375"; Outer Diameter: 0.8750"; Width (Thickness): 0.2188";

Product Attributes
Bearing Type Ball
For Load Direction Radial
Construction Single Row
Ball Bearing Type Flanged
Seal Type Open
Part Number FR6
For Shaft Diameter 3/8"
ID 0.375" | 9.525 mm
ID Tolerance -0.0003" to 0" | -0.008mm to 0
For Housing ID 7/8"
OD 0.8750" | 22.225 mm
OD Tolerance -0.0003" to 0" | -0.008mm to 0
Width (B) 0.2188" | 5.558 mm
Width Tolerance -0.005" to 0" | -0.12mm to 0
Flange OD 0.9650" | 24.511 mm
Flange Thickness 0.062" | 1.575 mm
Ring Material 52100 Chrome steel
Ball Material 52100 Chrome steel
Cage Material 300 Series Stainless Steel
Shield Material 300 Series Stainless Steel
Dynamic Load Rating (Cr) (Newtons) 2834.14
Static Load Rating (Cor) (Newtons) 1139
Max Speed (Grease) (X1000 RPM) 32
Max Speed (Oil) (X1000 RPM)  38
Lubrication Required
Shaft Mount Type Press Fit
Temperature Range -30° to 110 °C
ABEC Rating ABEC-1
Radial Clearance Trade No. C0
Radial Clearance 0.00008" to 0.0005" | 0.002mm to 0.013mm
RoHS Compliant
Ball Qty 7
Ball Dia 3.970mm
Weight (grams) 9.71
FR6
