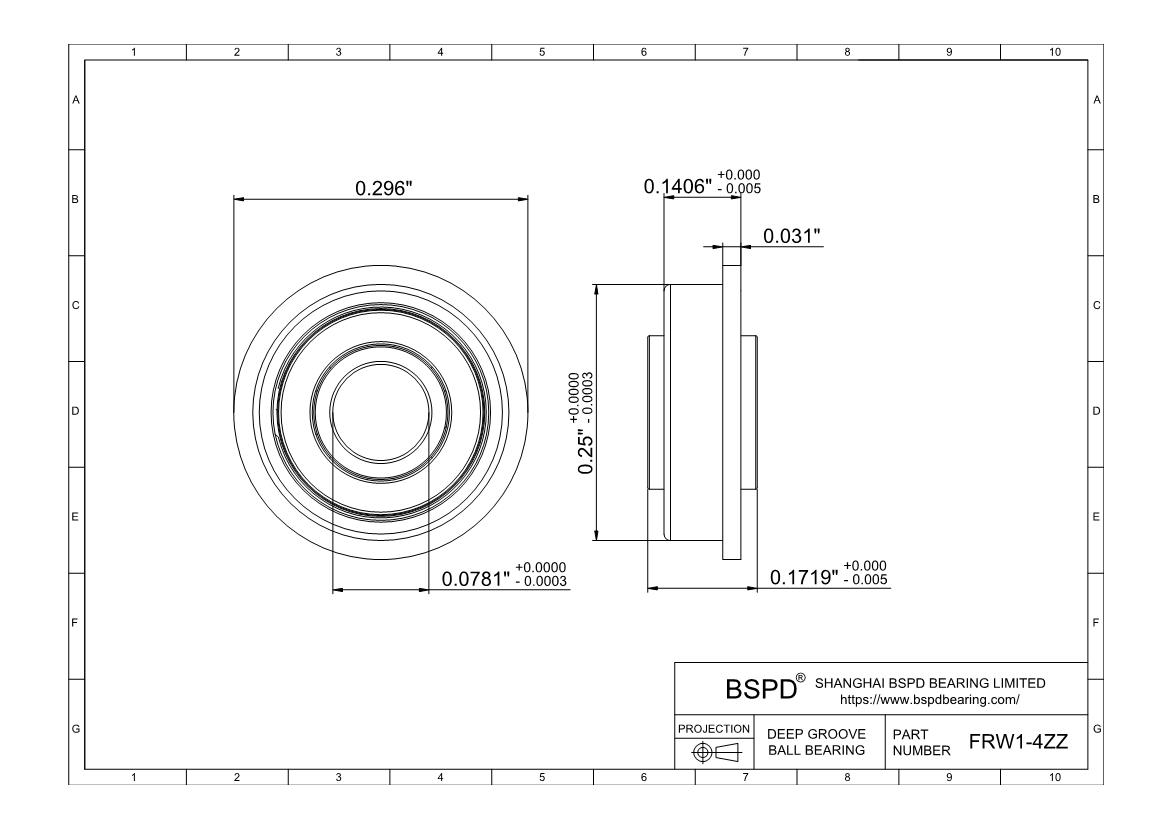

FRW1-4ZZ Miniature Bearing
Dimensions: Bore (Inner) Diameter: 0.0781"; Outer Diameter: 0.25"; Width (Thickness): 0.1406";

Product Attributes
Bearing Type Ball
For Load Direction Radial
Construction Single Row
Inner Ring Type Extended
Ball Bearing Type Flanged
Seal Type Shielded
Part Number FRW1-4zz - RIF-4ZZEE Miniature Ball Bearings Bearing
For Shaft Diameter 5/64"
ID 0.0781" | 1.984 mm
ID Tolerance -0.0003" to 0" | -0.008mm to 0
For Housing ID 1/4"
OD 0.25" | 6.35 mm
OD Tolerance -0.0003" to 0" | -0.008mm to 0
Width (B) 0.1406" | 3.571 mm
Width Tolerance -0.005" to 0" | -0.12mm to 0
Flange OD 0.296" | 7.518 mm
Flange Thickness 0.031" | 0.787 mm
Inner Ring Width 0.1719" | 4.366 mm
Ring Material 52100 Chrome steel
Ball Material 52100 Chrome steel
Cage Material 300 Series Stainless Steel
Shield Material 300 Series Stainless Steel
Dynamic Load Rating (Cr) (Newtons) 240.26
Static Load Rating (Cor) (Newtons) 75.64
Max Speed (Grease) (X1000 RPM) 110
Max Speed (Oil) (X1000 RPM)  130
Lubrication Required
Shaft Mount Type Press Fit
Temperature Range -30° to 110 °C
ABEC Rating ABEC-1
Radial Clearance Trade No. C0
Radial Clearance 0.00008" to 0.0005" | 0.002mm to 0.013mm
RoHS Compliant
Ball Qty 7
Ball Dia 0.0394"
Weight (grams) 0.2
FRW1-4ZZ
