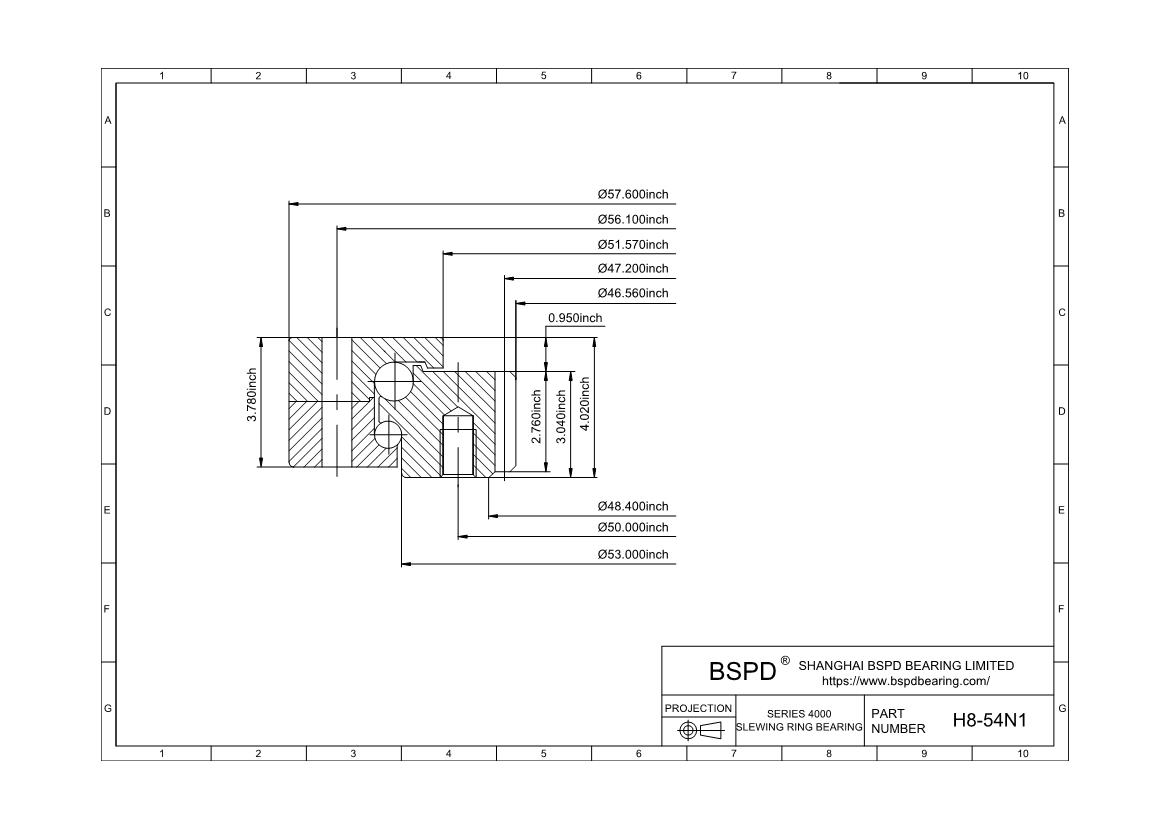

H8-54N1
Inch Size Slewing Rings
Dimensions: Bore (Inner) Diameter: 46.56"； Outer Diameter: 57.6"； Width (Thickness): 4.02";
REQUEST FOR QUOTE
Product Attributes
| Specifications | |
| Part Number | H8-54N1 |
| Raceway Moment (ft-lbs) | 588000 |
| Compressive Thrust(lbs) | 683000 |
| Weight(lbs) | 760 |
| Fig. no. | 3 |
| Outline Dimensions(inches) | |
| OD | 57.6 |
| ID | 46.56 |
| OE | 48.4 |
| OI | 51.57 |
| IO | 53 |
| HT | 4.02 |
| OH | 3.78 |
| IH | 3.04 |
| Mounting Holes | |
| OBC | 56.1 |
| OU | 0.91 |
| No of OBC Holes | 40 |
| IBC | 50 |
| IU | 0.91 |
| No of IBC Holes | 40 |
| Gear Data | |
| K | 0.98 |
| PD | 47.2 |
| DP | 2.5 |
| Tooth From 20 | STUB |
| F | 2.76 |
| NO of Teeth | 118 |
| Gear Hardness(BHN) | 180-210 |
| Max.allow tang.tooth load(lbs) | 10330 |
| Tangential Gear Capacity(lbs) | |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Slewing Bearings H8-54N1 ? Inch Size Slewing Rings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
