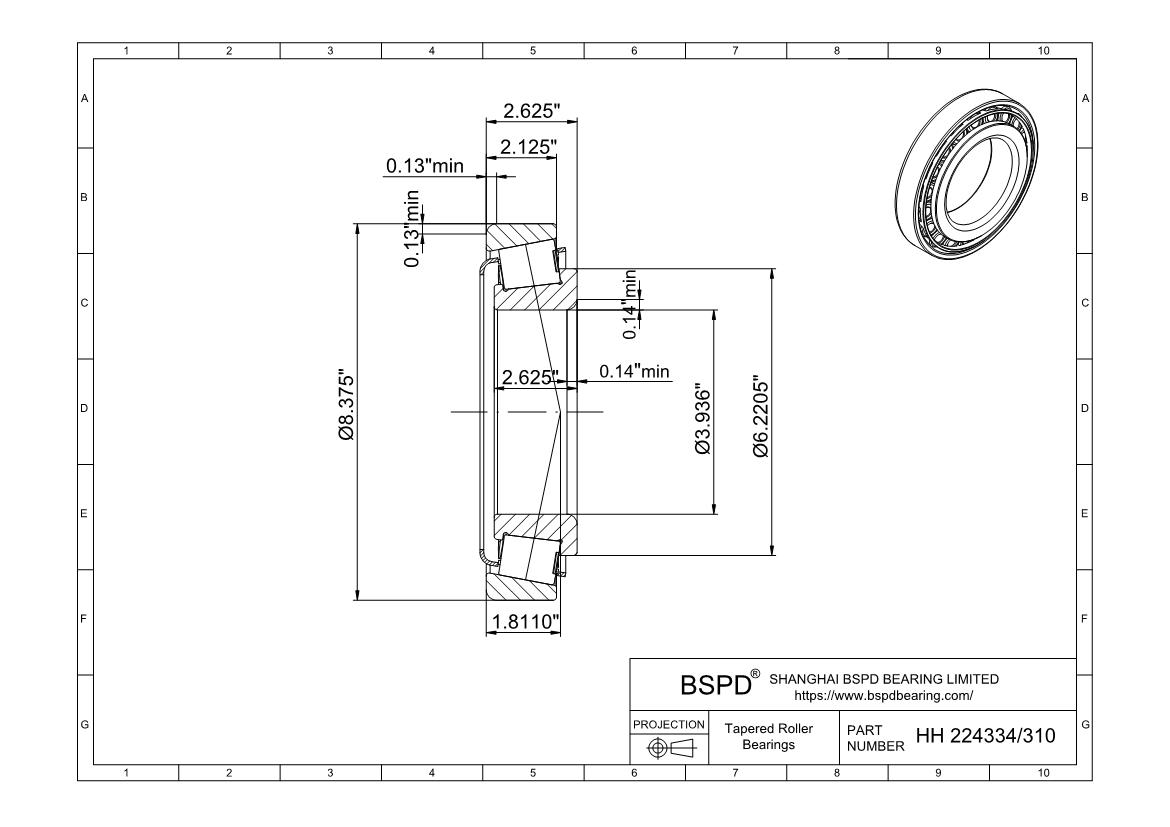

HH 224334/310 Inch Single Row Tapered Roller Bearings
Dimensions: Bore (Inner) Diameter: 3.9360 "; Outer Diameter: 8.3750 "; Width (Thickness): 2.6250 ";

HH 224334/310
REQUEST FOR QUOTE
* *
Send
Product Attributes
Product NumberHH 224334/310
Bore diameter3.9360 "
Outside diameter8.3750 "
Total width2.6250 "
Shoulder diameter of inner ring6.2205 "
Widthof inner ring2.6250 "
Width of outer ring2.1250 "
Chamfer minimum dimension of inner ring (r1,2)3.5 mm
Chamfer minimum dimension of outer ring (r3,4)3.3
Distance side face to pressure point (a)46
Basic dynamic load rating (Cr)619
Basic static load rating (Cor)830
Fatigue load limit (Pu)88
Reference speed2200 r/min
Limiting speed3000 r/min
Mass11.5 kg
Limiting value (e)0.33
Axial load factor (Y)1.8
Axial load factor (Y0)1
Maximum diameter of shaft abutment (da)132 mm
Minimum diameter of shaft abutment (db)115 mm
Minimum diameter of housing abutment (Da)184 mm
Maximum diameter of housing abutment (Da)199 mm
Minimum diameter of housing abutment (Db)202 mm
Minimum width of space required in housing on large side face (C10 mm
Minimum width of space required in housing on small side face (C12.5 mm
Maximum Radius of shaft fillet (ra)3.5 mm
Maximum Radius of housing fillet (rb)3.3 mm
