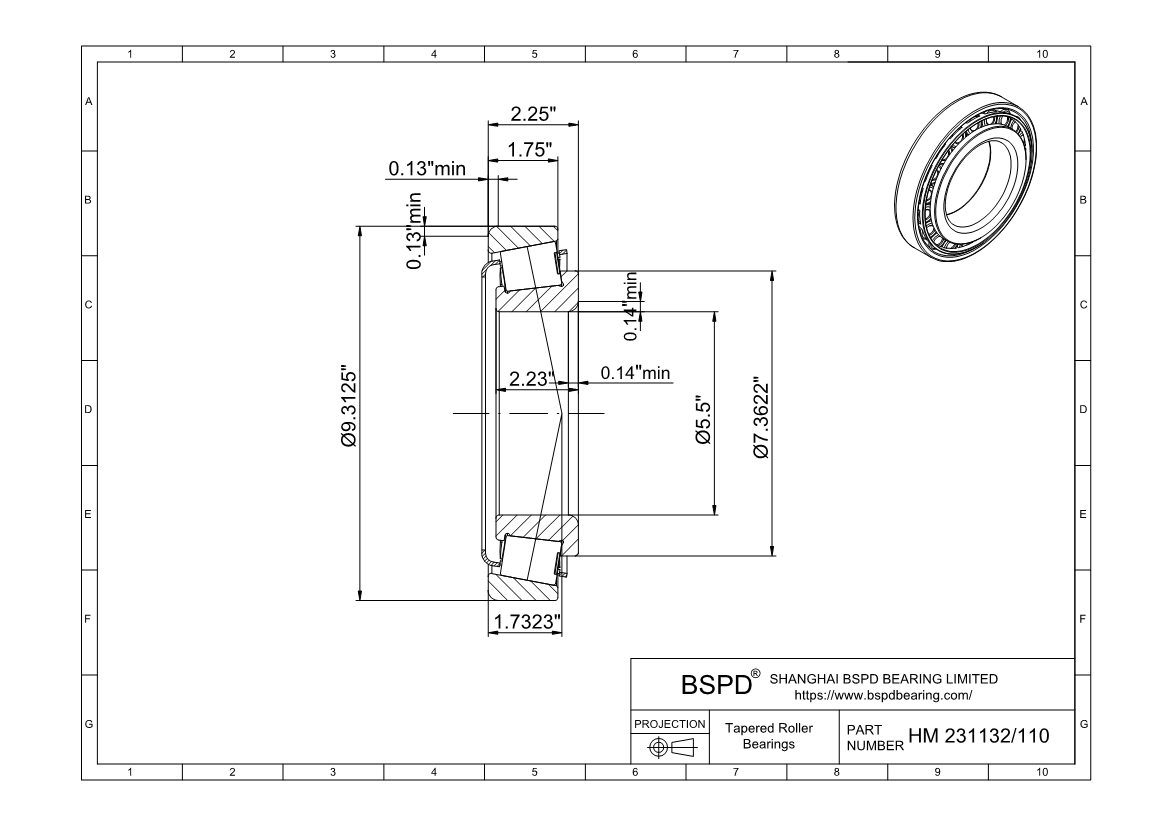

HM 231132/110 Inch Single Row Tapered Roller Bearings
Dimensions: Bore (Inner) Diameter: 5.5000 "; Outer Diameter: 9.3125 "; Width (Thickness): 2.2500 ";

HM 231132/110
REQUEST FOR QUOTE
* *
Send
Product Attributes
Product NumberHM 231132/110
Bore diameter5.5000 "
Outside diameter9.3125 "
Total width2.2500 "
Shoulder diameter of inner ring7.3622 "
Widthof inner ring2.2300 "
Width of outer ring1.7500 "
Chamfer minimum dimension of inner ring (r1,2)3.5 mm
Chamfer minimum dimension of outer ring (r3,4)3.3
Distance side face to pressure point (a)44
Basic dynamic load rating (Cr)629
Basic static load rating (Cor)850
Fatigue load limit (Pu)86.5
Reference speed2200 r/min
Limiting speed2600 r/min
Mass10 kg
Limiting value (e)0.31
Axial load factor (Y)1.9
Axial load factor (Y0)1.1
Maximum diameter of shaft abutment (da)165 mm
Minimum diameter of shaft abutment (db)156 mm
Minimum diameter of housing abutment (Da)210 mm
Maximum diameter of housing abutment (Da)222 mm
Minimum diameter of housing abutment (Db)223 mm
Minimum width of space required in housing on large side face (C9 mm
Minimum width of space required in housing on small side face (C12.5 mm
Maximum Radius of shaft fillet (ra)3.5 mm
Maximum Radius of housing fillet (rb)3.3 mm
HM 231132/110
Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings
What are the types of Tapered roller bearings HM 231132/110 ? Inch Single Row Tapered Roller Bearings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:Negotiation
Price:Negotiation
  • Fast Delivery     √
  • Best Quality       √
  • Good Price        √
