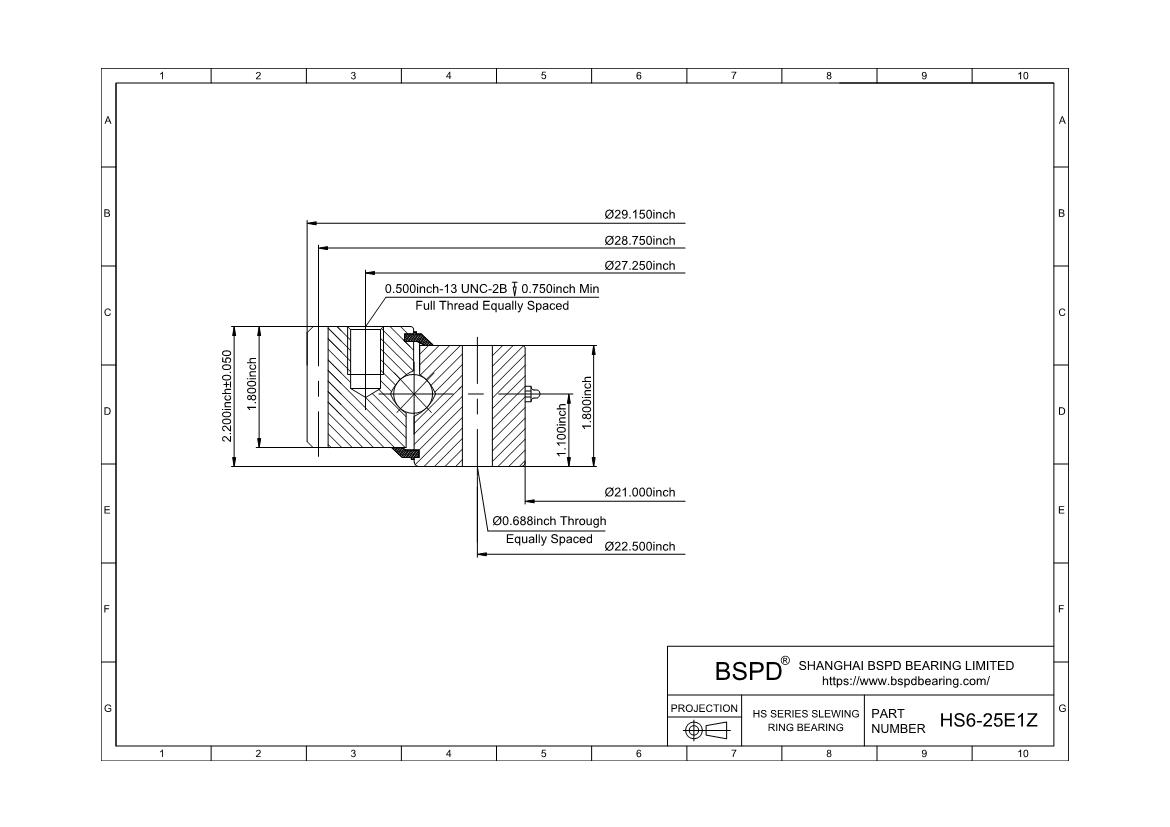

HS6-25E1Z
Kaydon Slewing Bearings
Dimensions: Bore (Inner) Diameter: 21.0"； Outer Diameter: 29.15"； Width (Thickness): ;
Product Attributes
| Specifications | |
| Part Number | HS6-25E1Z |
| Moment Load Rating (Crm) | 91,800ft-lbs | 409.821KN |
| Pressure Angle of Gear Teeth (α) | 20 º |
| Maximum Allowable Gear Tooth Load (Fz) | 5,127lbs | 22.888KN |
| Bearing Types | Slewing Ring Bearing |
| Outline Dimensions and Weight | |
| Outside Diameter of Outer Ring (Do) | 29.150" | 740.41mm |
| Inside Diameter of Inner Ring (di) | 21.000" | 533.4mm |
| Approximate Weight (lb) | 137lbs | 62.142KG |
| Mounting Holes | |
| Bolt Circle in Outer Ring (Lo) | 27.250" | 692.15mm |
| Number Holes in Outer Ring (no) | 20 |
| Bolt Circle in Inner Ring (Li) | 22.500" | 571.5mm |
| Number Holes in Inner Ring (ni) | 18 |
| Gear Data | |
| Pitch Diameter of Gear (D2) | 28.750" | 730.25mm |
| Diametral Pitch (Pd) | 4 |
| Number of Gear Teeth (z2) | 115 |
| Mating Pinions | 39200001 39200002 |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Slewing Bearings HS6-25E1Z ? Kaydon Slewing Bearings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
