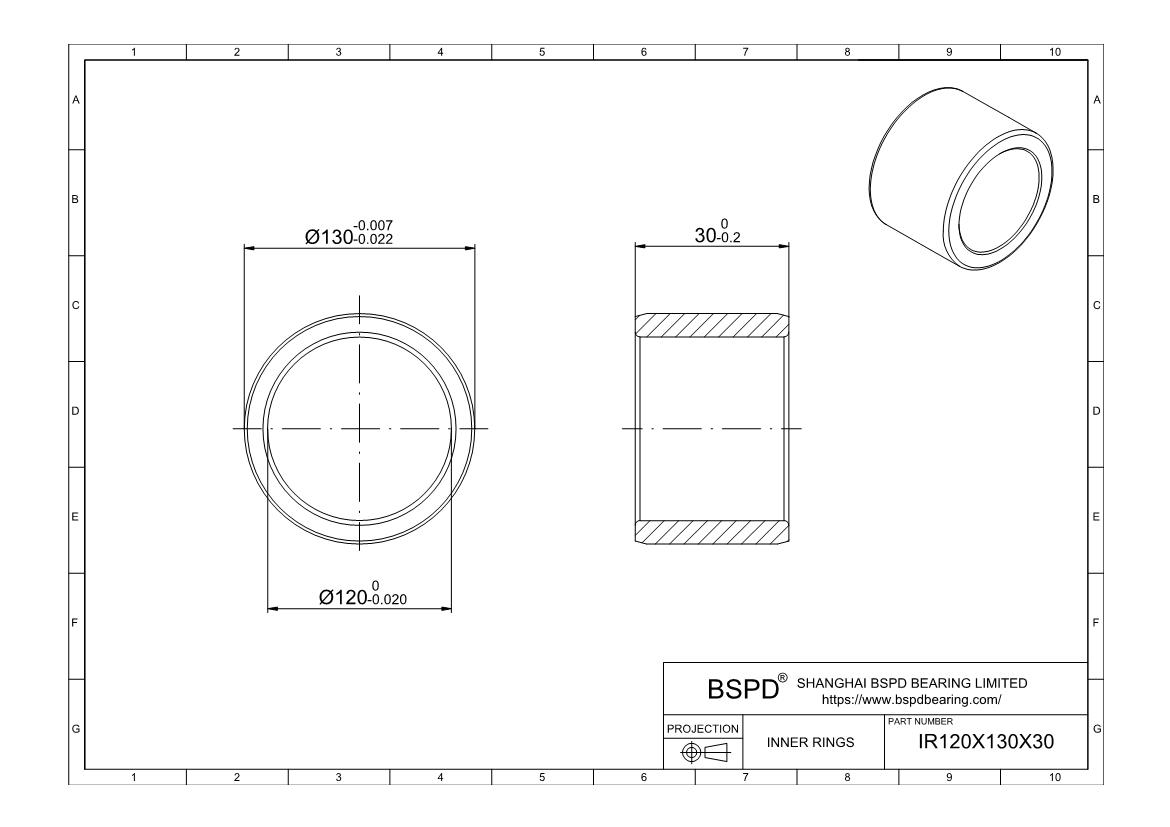

IR120X130X30
Inner Rings
Dimensions: Bore (Inner) Diameter: 120 mm； Outer Diameter: 130 mm； Width (Thickness): 30 mm;
REQUEST FOR QUOTE
Product Attributes
| System of Measurement | Metric |
| Part Number | IR120X130X30-XL |
| For Shaft Diameter | 120 mm |
| Bore Dia (d) | 120 mm |
| Bore Dia Tolerance | -0.02mm to 0 |
| Outer Dia | 130 mm |
| Outer Dia Tolerance | -0.022mm to -0.007mm |
| Width (B) | 30 mm |
| Width Tolerance | -0.2mm to 0 |
| rmin | 1 mm |
| Ring Material | Steel |
| Lubrication | Lubricated |
| RoHS | Compliant |
| Weight (g) | 442 |
Print PDF
Request a 3D CAD Model
