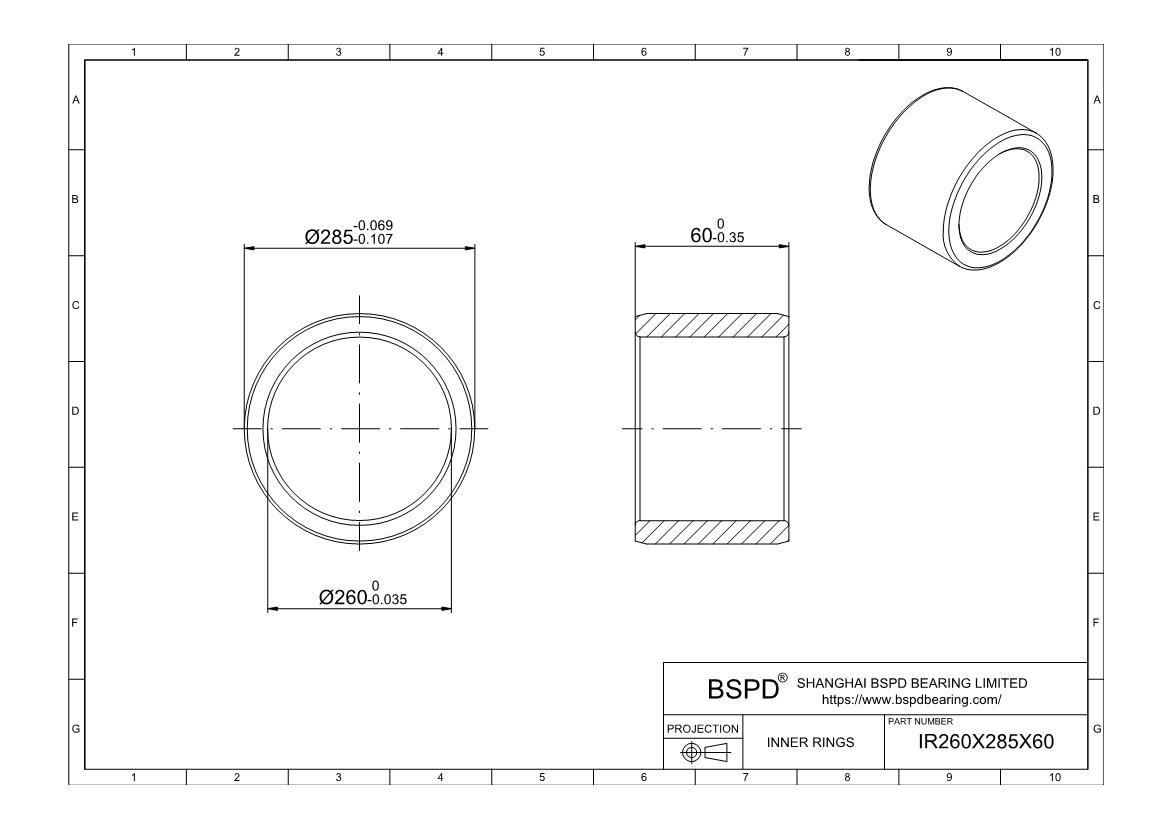

IR260X285X60
Inner Rings
Dimensions: Bore (Inner) Diameter: 260 mm； Outer Diameter: 285 mm； Width (Thickness): 60 mm;
REQUEST FOR QUOTE
Product Attributes
| System of Measurement | Metric |
| Part Number | IR260X285X60-XL |
| For Shaft Diameter | 260 mm |
| Bore Dia (d) | 260 mm |
| Bore Dia Tolerance | -0.035mm to 0 |
| Outer Dia | 285 mm |
| Outer Dia Tolerance | -0.107mm to -0.069mm |
| Width (B) | 60 mm |
| Width Tolerance | -0.35mm to 0 |
| rmin | 2 mm |
| Ring Material | Steel |
| Lubrication | Lubricated |
| RoHS | Compliant |
| Weight (g) | 4980 |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Needle Roller Bearings IR260X285X60 ? Inner Rings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
