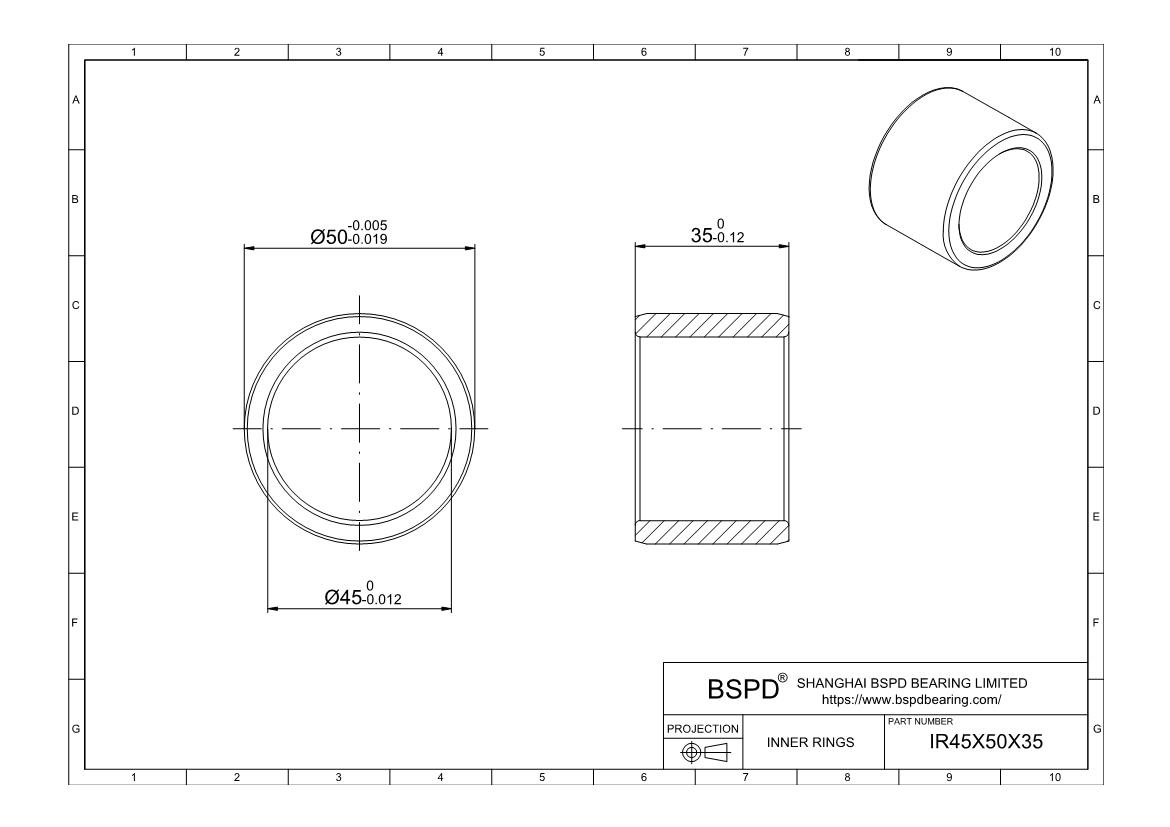

IR45X50X35
Inner Rings
Dimensions: Bore (Inner) Diameter: 45 mm； Outer Diameter: 50 mm； Width (Thickness): 35 mm;
REQUEST FOR QUOTE
Product Attributes
| System of Measurement | Metric |
| Part Number | IR45X50X35-XL |
| For Shaft Diameter | 45 mm |
| Bore Dia (d) | 45 mm |
| Bore Dia Tolerance | -0.012mm to 0 |
| Outer Dia | 50 mm |
| Outer Dia Tolerance | -0.019mm to -0.005mm |
| Width (B) | 35 mm |
| Width Tolerance | -0.12mm to 0 |
| rmin | 0.6 mm |
| Ring Material | Steel |
| Lubrication | Lubricated |
| RoHS | Compliant |
| Weight (g) | 101 |
Print PDF
Request a 3D CAD Model
