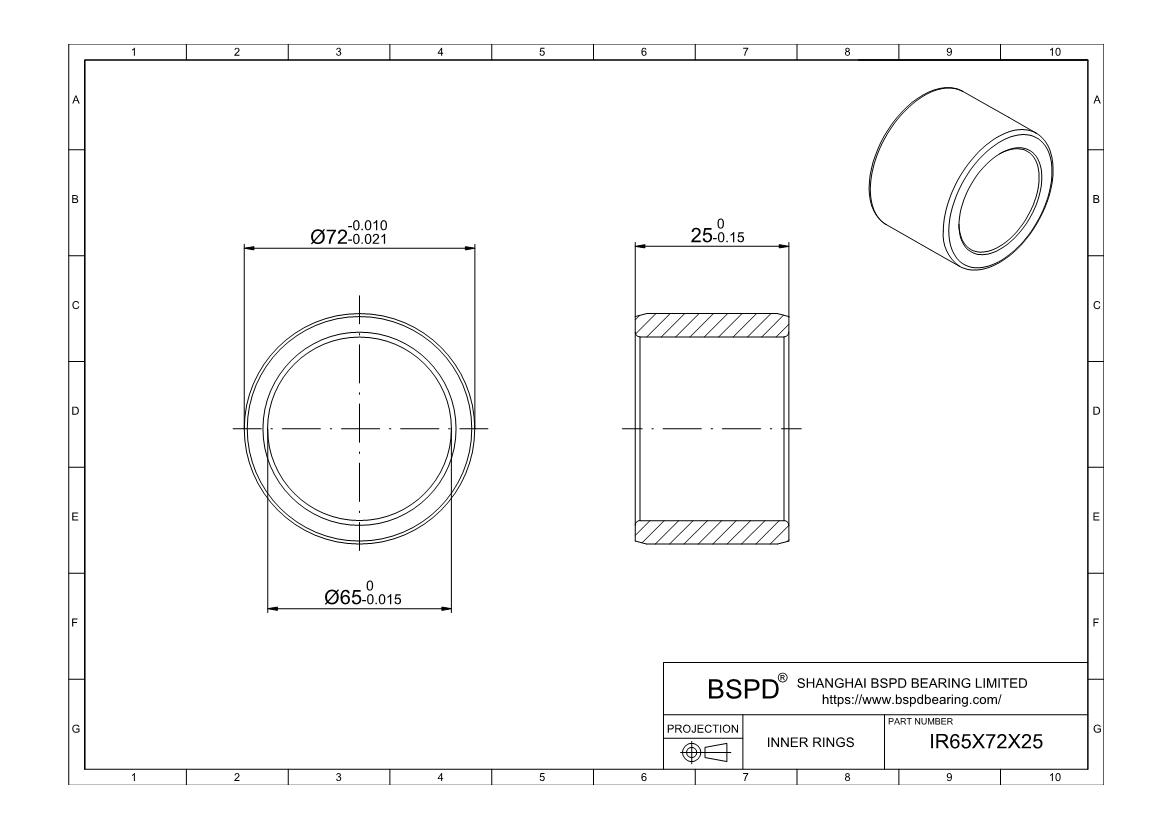

IR65X72X25
Inner Rings
Dimensions: Bore (Inner) Diameter: 65 mm； Outer Diameter: 72 mm； Width (Thickness): 25 mm;
REQUEST FOR QUOTE
Product Attributes
| System of Measurement | Metric |
| Part Number | IR65X72X25-XL |
| For Shaft Diameter | 65 mm |
| Bore Dia (d) | 65 mm |
| Bore Dia Tolerance | -0.015mm to 0 |
| Outer Dia | 72 mm |
| Outer Dia Tolerance | -0.021mm to -0.010mm |
| Width (B) | 25 mm |
| Width Tolerance | -0.15mm to 0 |
| rmin | 1 mm |
| Ring Material | Steel |
| Lubrication | Lubricated |
| RoHS | Compliant |
| Weight (g) | 141 |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Needle Roller Bearings IR65X72X25 ? Inner Rings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
