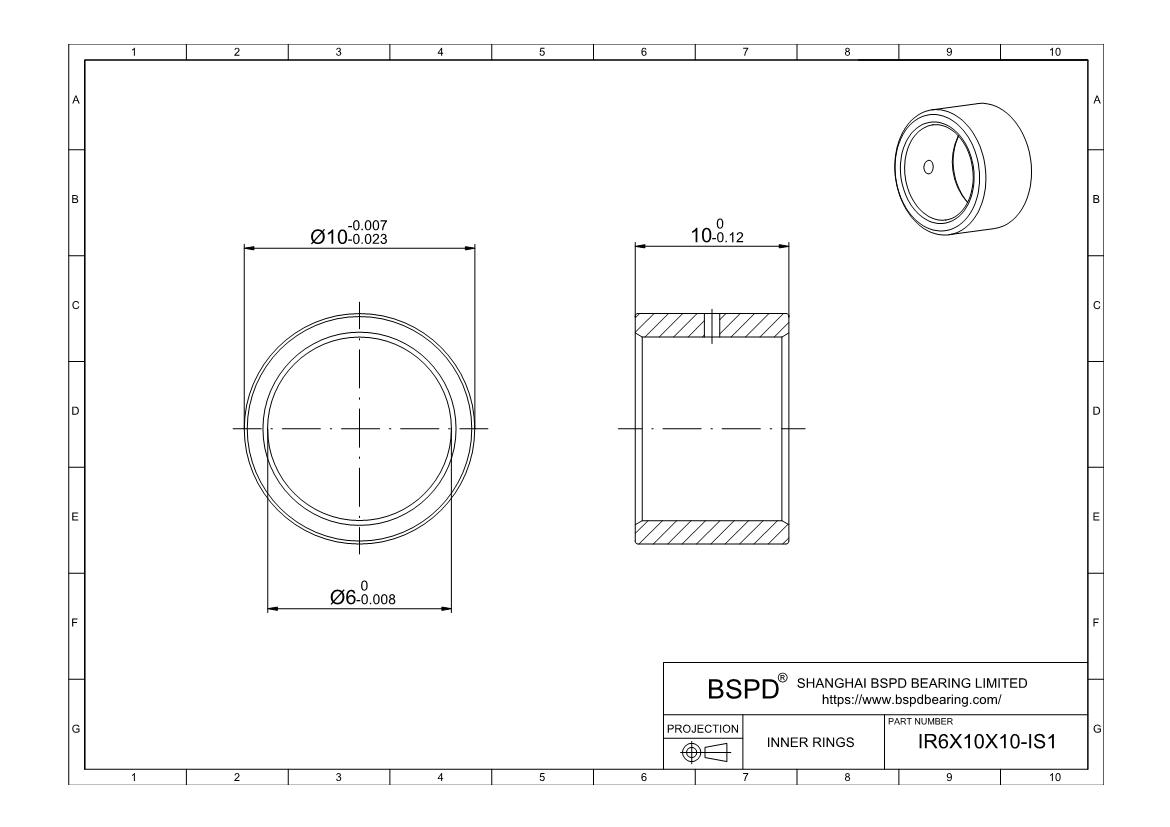

IR6X10X10-IS1
Inner Rings
Dimensions: Bore (Inner) Diameter: 6 mm； Outer Diameter: 10 mm； Width (Thickness): 10 mm;
REQUEST FOR QUOTE
Product Attributes
| System of Measurement | Metric |
| Part Number | IR6X10X10-IS1-XL |
| For Shaft Diameter | 6 mm |
| Bore Dia (d) | 6 mm |
| Bore Dia Tolerance | -0.008mm to 0 |
| Outer Dia | 10 mm |
| Outer Dia Tolerance | -0.023mm to -0.007mm |
| Width (B) | 10 mm |
| Width Tolerance | -0.12mm to 0 |
| rmin | 0.3 mm |
| Number of lubrication holes | 1 |
| Ring Material | Steel |
| Lubrication | Lubricated |
| RoHS | Compliant |
| Weight (g) | 3.7 |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Needle Roller Bearings IR6X10X10-IS1 ? Inner Rings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
