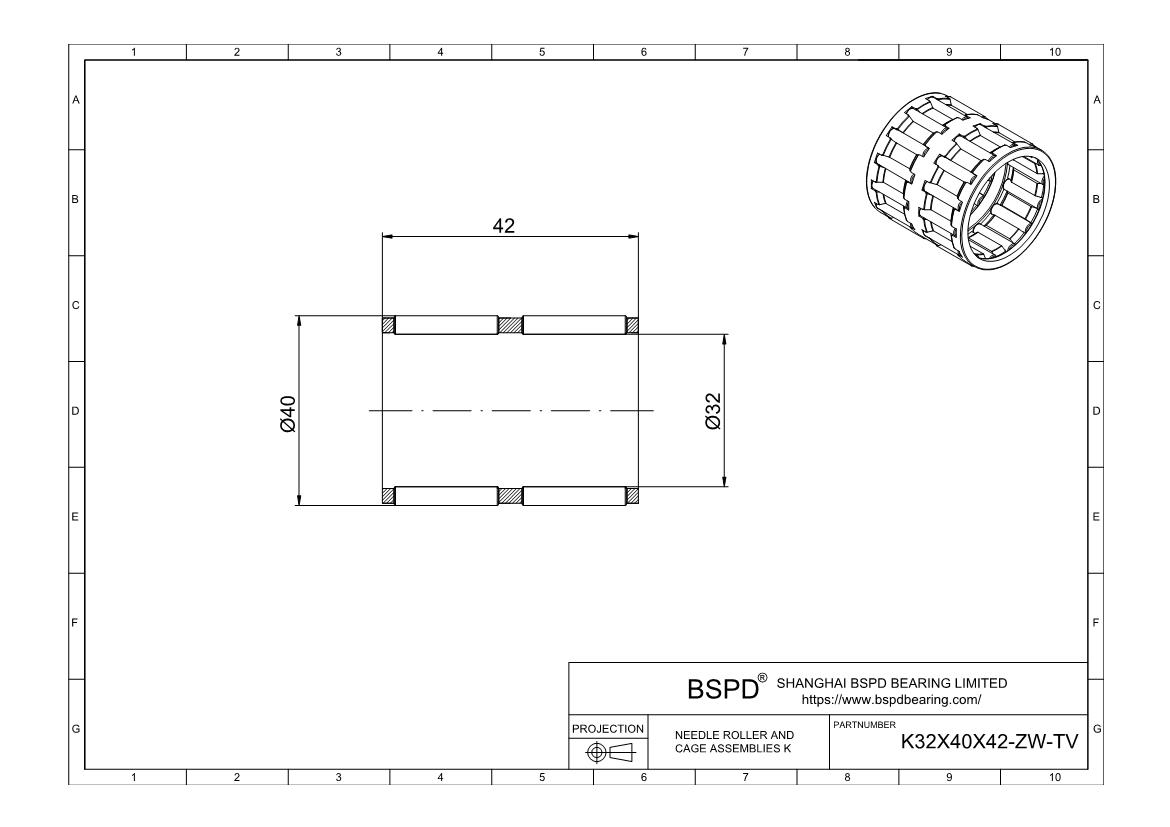

K32X40X42-ZW-TV
Needle Roller And Cage Assemblies
Dimensions: Bore (Inner) Diameter: 32 mm； Outer Diameter: 40 mm； Width (Thickness): 42 mm;
REQUEST FOR QUOTE
Needle Roller Bearings of similar size
same inner diameter
same outer diameter
same width
Product Attributes
| Bearing Type | Needle |
| Construction | Double Row |
| Seal Type | Open |
| System of Measurement | Metric |
| Part Number | K32X40X42-ZW-TV |
| Fw | 32 mm |
| Ew | 40 mm |
| Bc | 42 mm |
| Needle Material | Steel |
| Cage Material | PA66 |
| Dynamic Load Rating (Cr) (Newtons) | 50000 N |
| Static Load Rating (Cor) (Newtons) | 84000 N |
| Fatigue Load Rating (Cur) (Newtons) | 10700 N |
| Max Speed (RPM) | 13600 1/min |
| Temperature Range | -30° to 110 °C |
| RoHS | Compliant |
| Weight (g) | 77 g |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Needle Roller Bearings K32X40X42-ZW-TV ? Needle Roller And Cage Assemblies Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
