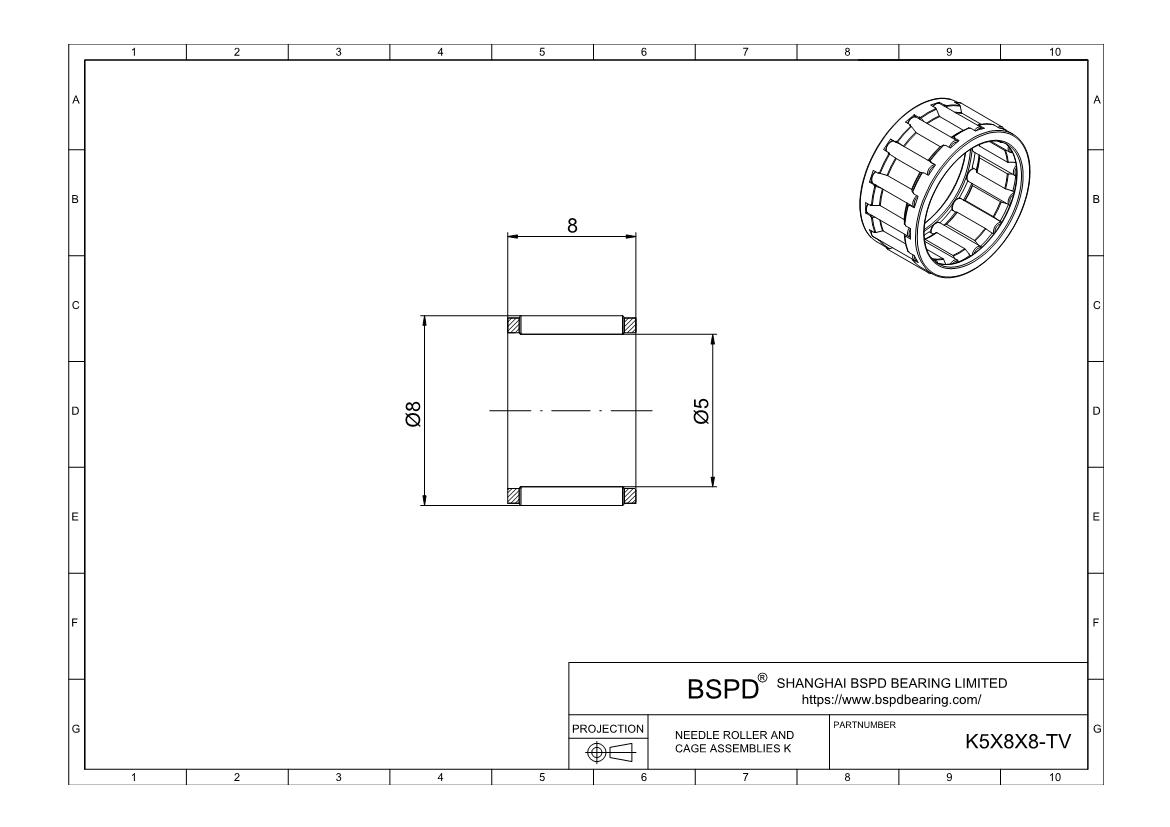

K5X8X8-TV
Needle Roller And Cage Assemblies
Dimensions: Bore (Inner) Diameter: 5 mm； Outer Diameter: 8 mm； Width (Thickness): 8 mm;
REQUEST FOR QUOTE
Product Attributes
| Bearing Type | Needle |
| Construction | Single Row |
| Seal Type | Open |
| System of Measurement | Metric |
| Part Number | K5X8X8-TV |
| Fw | 5 mm |
| Ew | 8 mm |
| Bc | 8 mm |
| Needle Material | Steel |
| Cage Material | PA66 |
| Dynamic Load Rating (Cr) (Newtons) | 2350 N |
| Static Load Rating (Cor) (Newtons) | 1920 N |
| Fatigue Load Rating (Cur) (Newtons) | 242N |
| Max Speed (RPM) | 39000 1/min |
| Temperature Range | -30° to 110 °C |
| RoHS | Compliant |
| Weight (g) | 0.7 g |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
