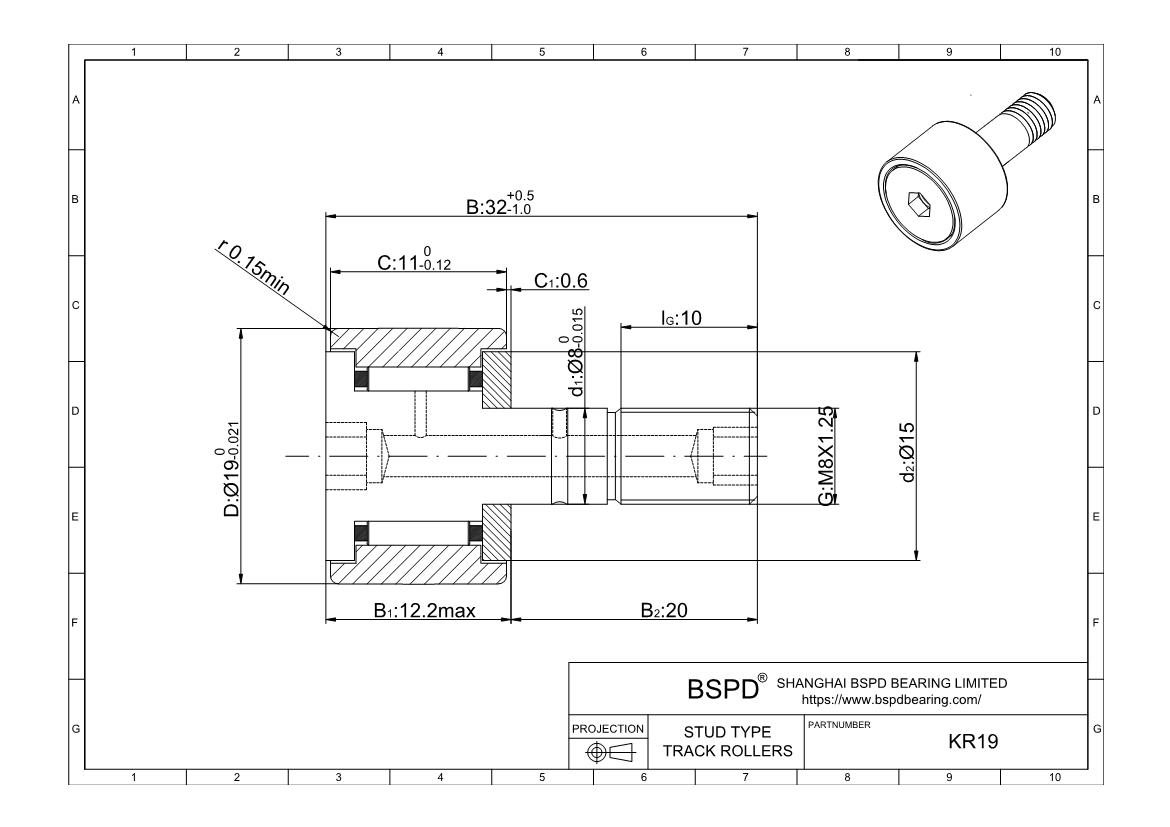

KR19 Cam Followers, Yoke Type & Stud Type Track Rollers
Dimensions: Roller Dia: 19 mm; Roller Width: 11 mm; Stud Dia: 8 mm; Stud Length: 20 mm;

KR19
REQUEST FOR QUOTE
* *
Send
Product Attributes
Guide Roller Type Track
Track Roller Type Round
For Load Direction Radial
Roller Profile Flat
Roller Style Threaded Stud
Roller Material Steel
D 19 mm
d1 8 mm
B 32 mm
Projection of lubrication nipple 1.5 mm
B1 max 12,2 mm
B2 20 mm
C 11 mm
C1 0,6 mm
d2 15 mm
G M8 (x1,25)
IG 10 mm
rmin 0.15 mm
Cr w 3500 N
Cur w 540 N
Maximum Speed 11000 1/min
Temperature Range -20 to 110 °C
Shaft Mount Type Press Fit
Bearing Type Needle Roller
With Seal Yes
Lubrication Required
RoHS Compliant
Weight (g) 29
KR19
